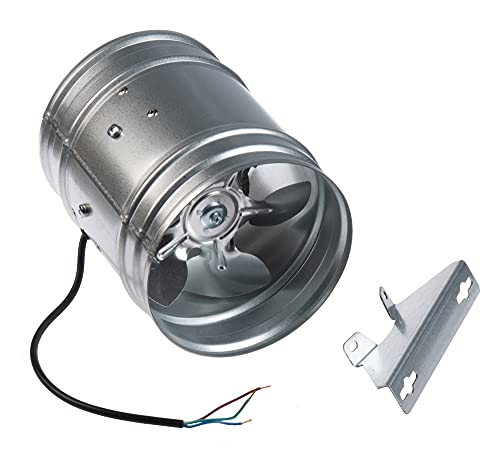

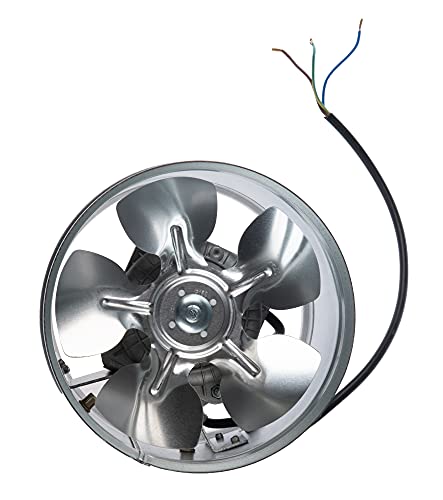

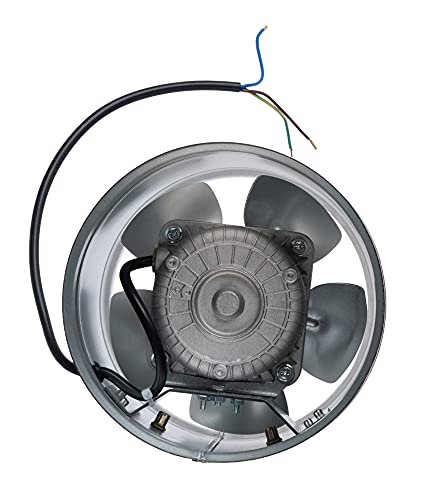

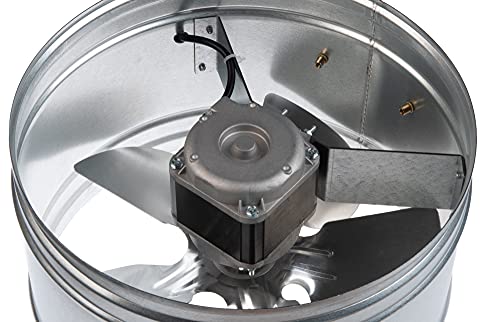

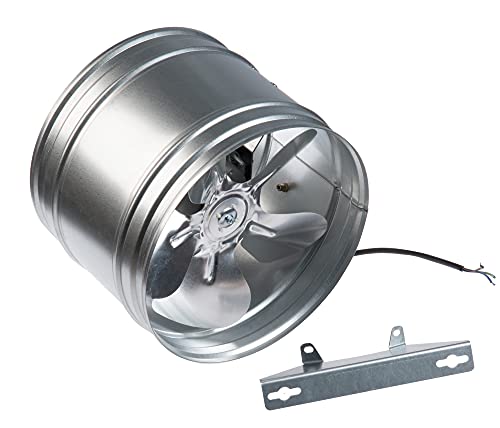

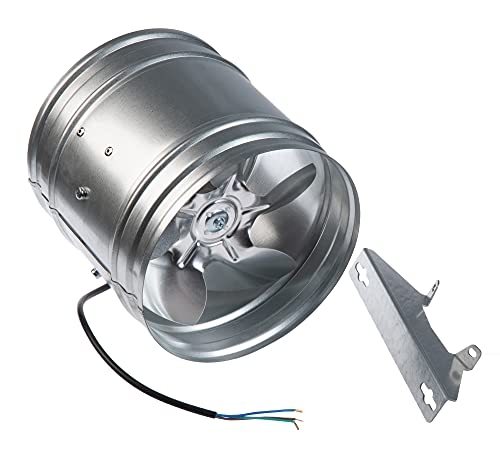

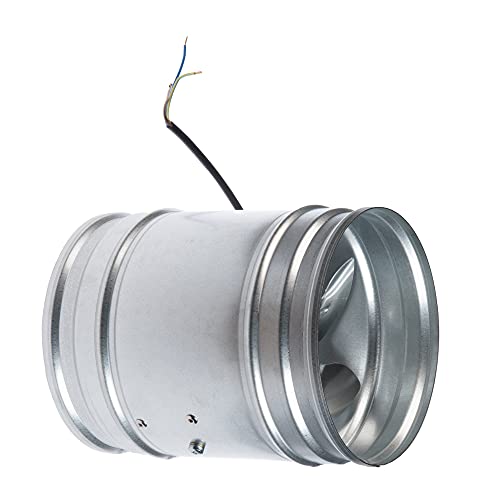

Axial Inline Fan - Metal Industrial Ducting Extractor Fan
Industrial Inline Fans
Low pressure Ø 160 mm, Ø 200 mm, Ø 250 mm, Ø 315 mm Axial Inline Fans suitable for use in various duct ventilation systems. Made of galvanised steel, they are suitable for improving the air flow of ventilation ducts. Improve air flow in your ventilation system by providing circulation, fresh air and a good indoor microclimate.

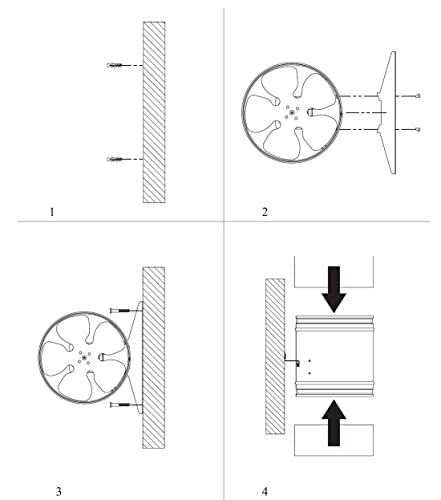

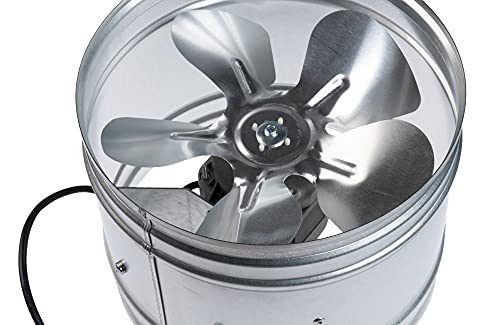

Made for installation at any angle, compatible with appropriately sized air ducts. Inlain Fans are designed for maximum efficiency while maintaining a low noise level. Balanced blades ensure smooth fan operation and long service life.
Additional info
- Inline Extraction Fans ensure the reduction of humidity levels in rooms with increased humidity.
- Intended for combined supply and exhaust ventilation systems for various rooms where high flow is required at relatively low system resistance.
- Improve air quality and remove the increased humidity from the room, reducing the risk of mold growth by installing our quality inline fan.
Steinberg14 Extractor Fan are delivered from Amazon warehouses, so you can get your items quickly.
Tax and shipping included
Made in EU
Extractor Fan - ZKM Series
Provide information on the dimensions, power metrics, airflow capacity, and noise levels of the extractor fan.
Technical information
ZKM160 Ø160 mm |
ZKM200 Ø200 mm |
ZKM250 Ø250 mm |
ZKM315 Ø315 mm |
|
Voltage (V) | 230 – 240 | |||
Phase (Hz) | 50 | |||
Power (W) | 21 | 29 | 70 | 110 |
Suction power (m3/h) | 183 | 340 | 800 | 1325 |
Noise level: 3m distance, Lp A dB(A) | 43 | 47 | 48 | 55 |
Protection against environmental factor | IPX4 | |||
RPM | 1330 | |||
Ambient temperature | 0 °C ... +40 °C | |||
Air duct size (mm) | 160 | 200 | 250 | 315 |
Weight (kg) | 1,56 | 1,99 | 2,78 | 3,70 |

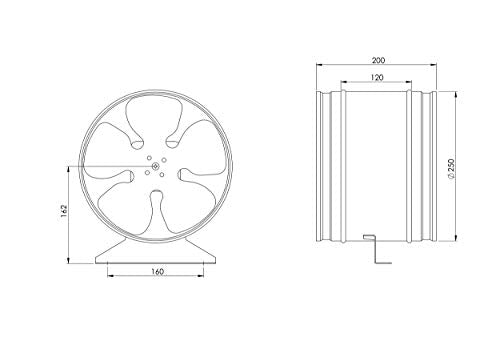

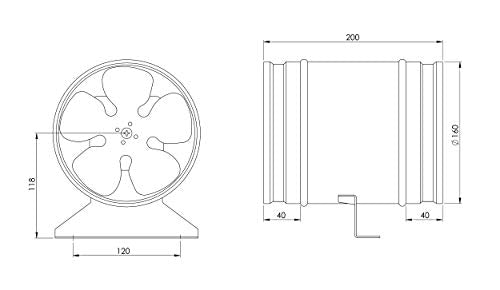

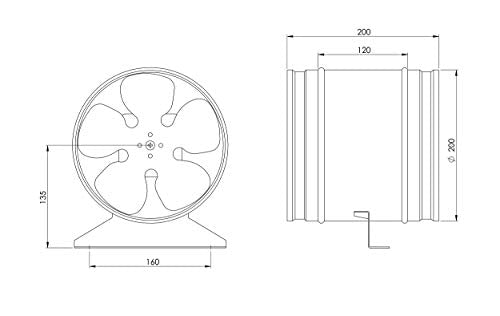

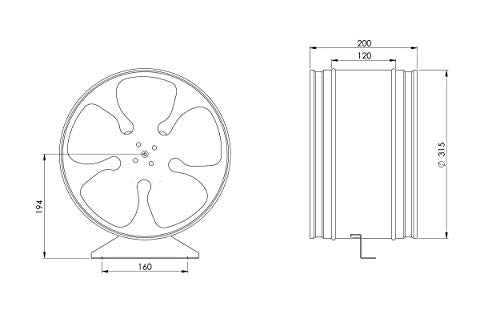

Extractor Fan sizes
Scheme with the dimensions of the extractor fan.
Sizes, mm |
ZKM160 Ø160 mm |
ZKM200 Ø200 mm |
ZKM250 Ø250 mm |
ZKM315 Ø315 mm |
A - Ø | 160 | 200 | 250 | 315 |
B | 200 | |||
C | 40 | |||
D | 120 | 160 | 160 | 160 |
