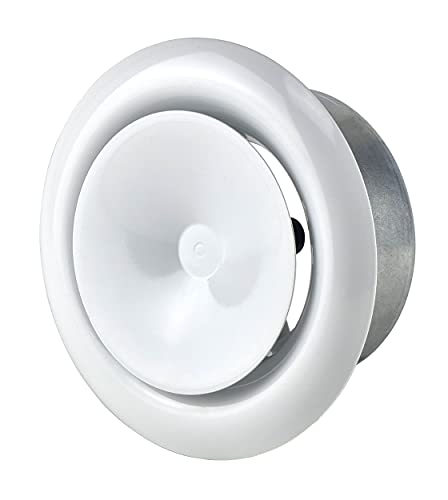

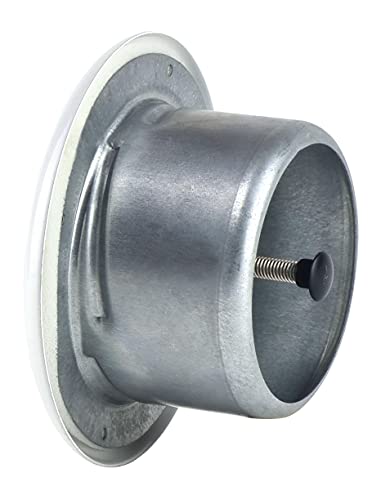

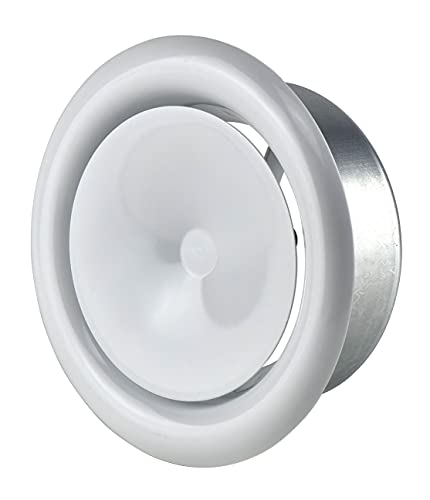

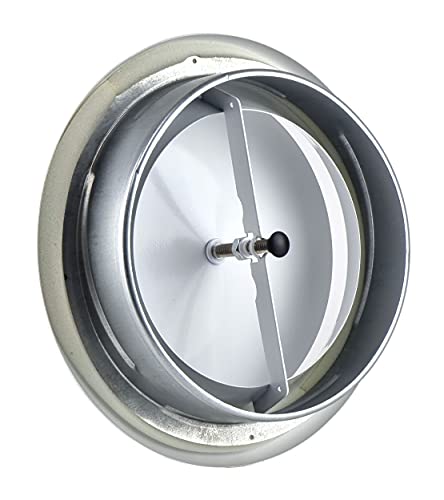

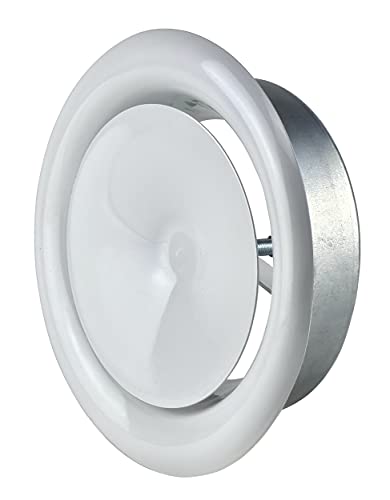

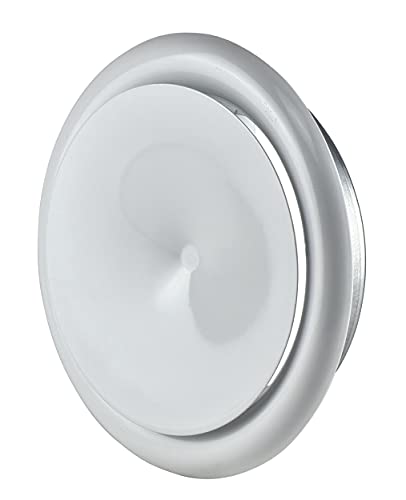

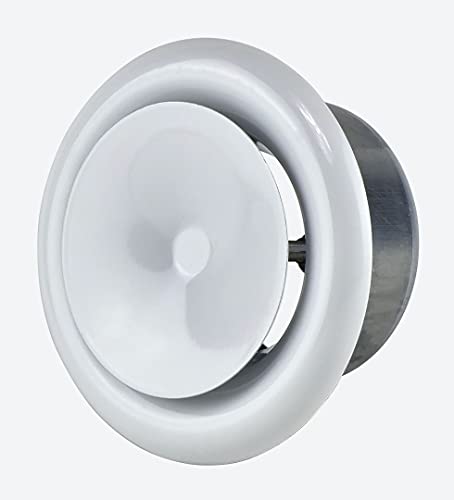

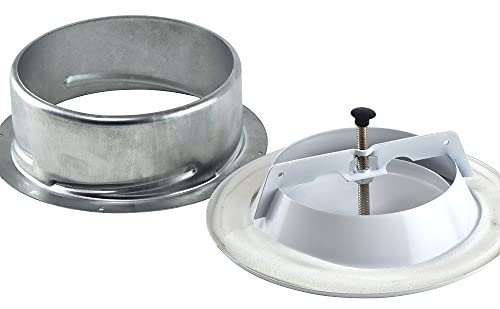

DMP Round Air Extract Supply Valve - Ducting Cover Diffuser with mounting collar DMP
Features:
- Supply Air Exhaust Ceiling Valve Anemostat Plate Valve
- Fination of the ventilation system
- Flow of fresh air flow
- Installation: wall or ceiling
- The installation is very simple.
Details: Metal Ceiling Air Extract Valve is the essential universal end cap for your venting system. This valve can be used as a part of a long ductwork run for a variety of purposes including whole house ventilation, passive ventilation, positive input, air conditioning, HVAC, and Heat Recovery Systems. Made in Europe.
Tax and shipping included
Made in EU
Available in the following variations:
Metal Exhaust Diffusers - DMP Series size chart.
Scheme with the dimensions of the Classic Round Air Extract Valve.
| Model size | ØD (mm) |
ØD1 (mm) |
H (mm) |
H1 (mm) |
m (kg) |
| 80 mm / 3.1 inch | 79 | 116 | 55 | 8 | 0.18 |
| 100 mm / 4 inch | 99 | 140 | 55 | 8 | 0.22 |
| 125 mm / 5 inch | 124 | 167 | 55 | 8 | 0.39 |
| 150 mm / 6 inch | 149 | 200 | 55 | 8 | 0,41 |
| 160 mm / 6.3 inch | 159 | 210 | 55 | 9 | 0.43 |
| 200 mm / 8 inch | 199 | 247 | 55 | 10 | 0.76 |
