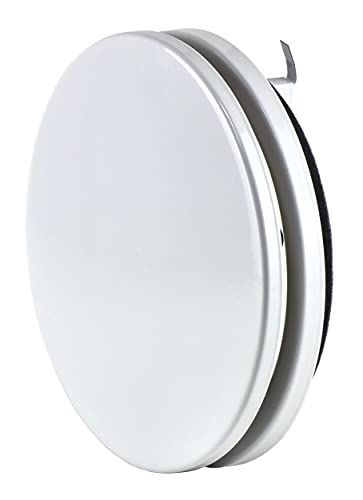

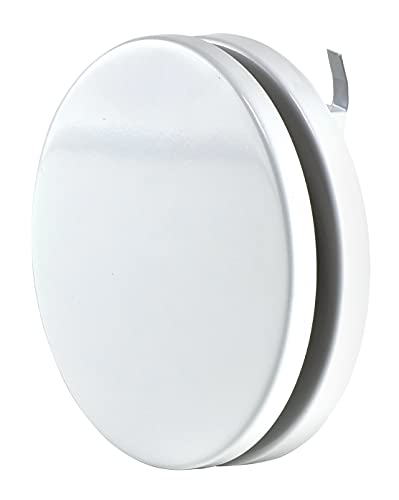

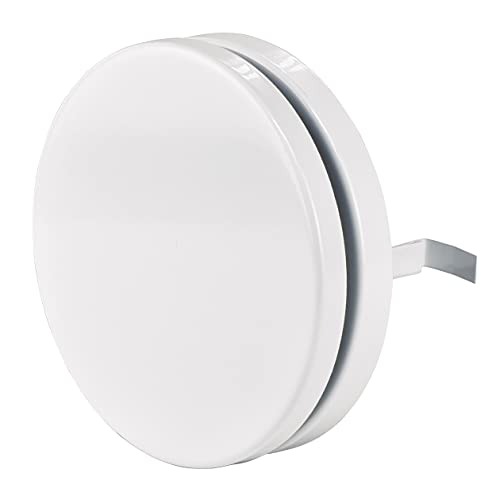

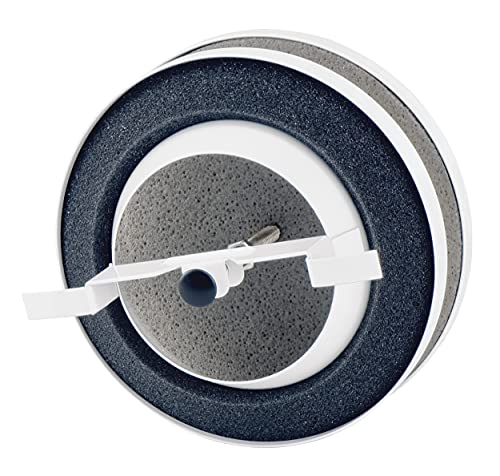

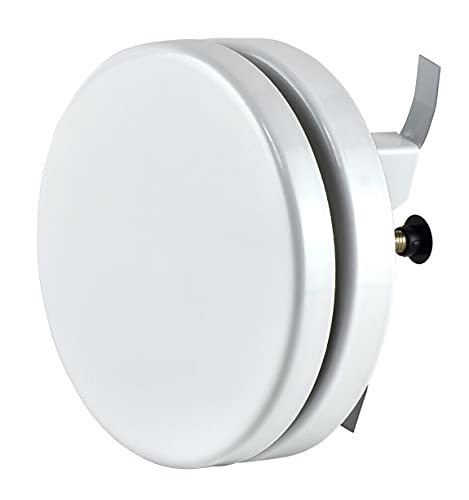

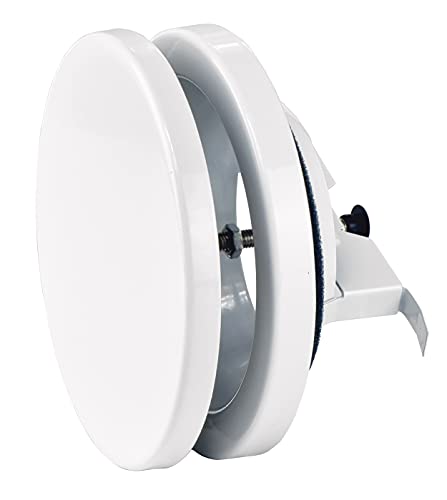

White - Ø 100mm / 4" - Exhaust / Supply - with Clamp Springs DMKP - DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP

White - Ø 125mm / 5" - Exhaust / Supply - with Clamp Springs DMKP - DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP

White - Ø 160mm / 6.3" - Exhaust / Supply - with Clamp Springs DMKP - DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP

White - Ø 200mm / 8" - Exhaust / Supply - with Clamp Springs DMKP - DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP

White - Ø 80mm / 3.1" - Exhaust / Supply - with Clamp Springs DMKP - DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP

DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP

Name: DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP
Brand: Steinberg14
SKU: ST DMKP125
Price: 14.95 GBP
Availability: OutOfStock

Steinberg14

£16.95

Features:

Supply Air Exhaust Ceiling Valve Anemostat Plate Valve
Fination of the ventilation system
Flow of fresh air flow
Installation: wall or ceiling
The installation is very simple.

Details: Metal Ceiling Air Extract Valve is the essential universal end cap for your venting system. This valve can be used as a part of a long ductwork run for a variety of purposes including whole house ventilation, passive ventilation, positive input, air conditioning, HVAC, and Heat Recovery Systems. Made in Europe.

Color:

White

Style:

Exhaust / Supply - with Clamp Springs DMKP

Variant

Only 2 units left

Tax and shipping included

Made in EU

Available in the following variations:

White - Ø 100mm / 4" - Exhaust / Supply - with mounting collar DM - DM Round Air Extract Supply Valve - Ducting Cover Diffuser with mounting collar DM

White - Ø 100mm / 4" - Exhaust / Supply - with Clamp Springs DMK - DMK Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMK

White - Ø 100mm / 4" - Exhaust / Supply - with mounting collar DMP - DMP Round Air Extract Supply Valve - Ducting Cover Diffuser with mounting collar DMP

Wood, pine - Ø 125mm / 5" - Exhaust / Supply - KD Wood Round Air Extract Supply Valve - Ducting Cover Diffuser

Stainless Steel - Ø 100mm / 4" - Exhaust / Supply - with mounting collar up to + 600°C - Stainless Steel DMi Round Air Extract Supply Valve - Ducting Cover Diffuser

Technical data and dimensions

Metal Exhaust Diffusers with Low Noise Level - DMKP Series size chart.

Scheme with the dimensions of the Round Air Extract Valve.

Technical info - metal exhaust diffusers with low noise level - DMKP Series

Model size	ØD (mm)	ØD1 (mm)	H (mm)	H1 (mm)	m (kg)
80 mm / 3.1 inch	79	107	70	25	0.21
100 mm / 4 inch	99	135	70	25	0.29
125 mm / 5 inch	124	160	70	25	0.36
160 mm / 6.3 inch	159	195	74	25	0.51
200 mm / 8 inch	199	230	78	25	0.64

DMKP Round Air Extract Supply Valve - Ducting Cover Diffuser with Clamp Springs DMKP

£16.95
