15 Pcs Metal Ventilation Grille - 300 x 200 mm / 12 x 8 inch Air Vent Cover with Insect Protection Screen - Grilles for Indoor / Outdoor installation

Name: 15 Pcs Metal Ventilation Grille - 300 x 200 mm / 12 x 8 inch Air Vent Cover with Insect Protection Screen - Grilles for Indoor / Outdoor installation
Brand: Steinberg14
SKU: ST MR3020A 15gab MANUAL
Price: 120.0 GBP
Availability: InStock

Steinberg14

£120.00

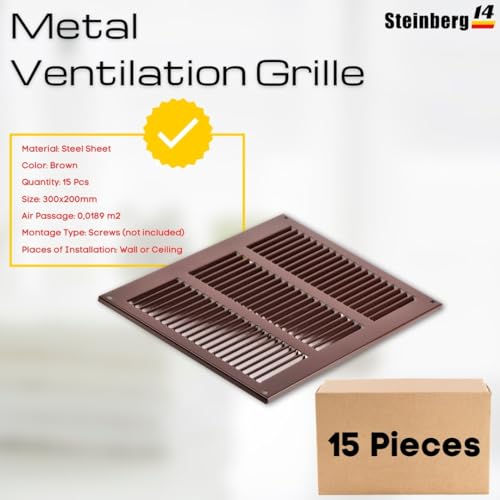

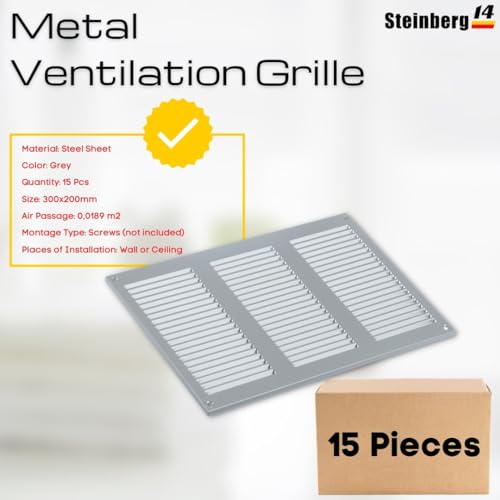

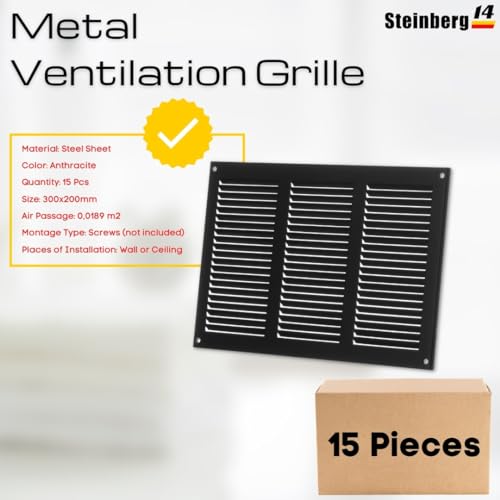

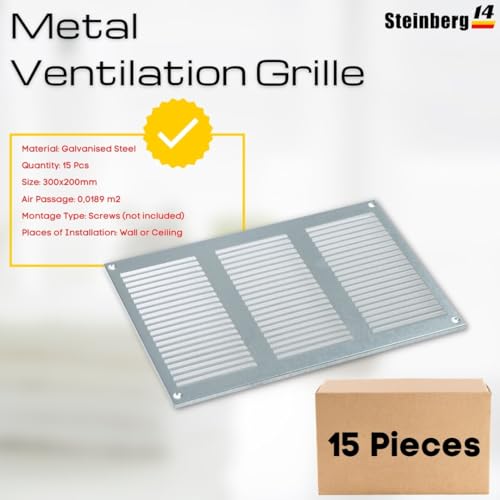

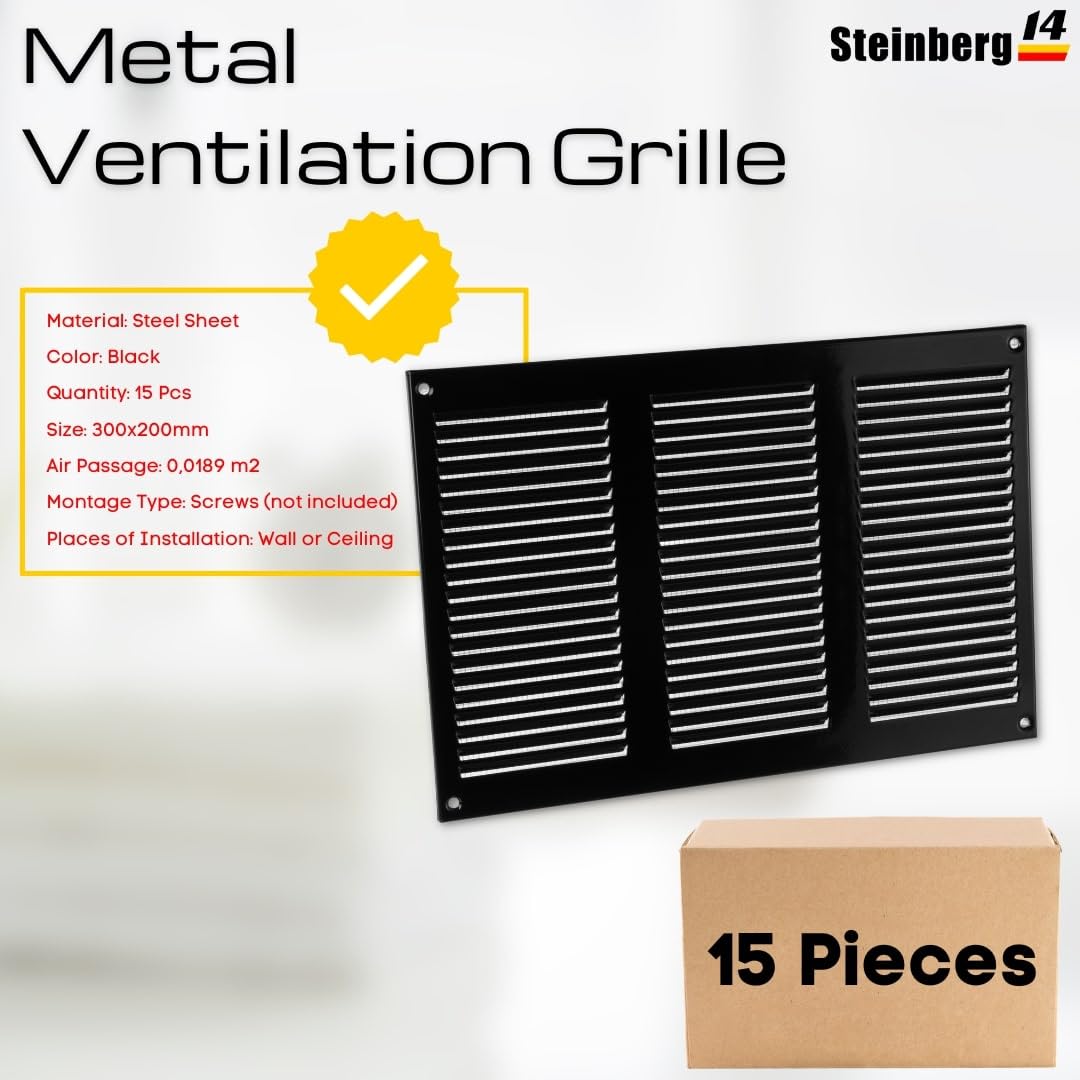

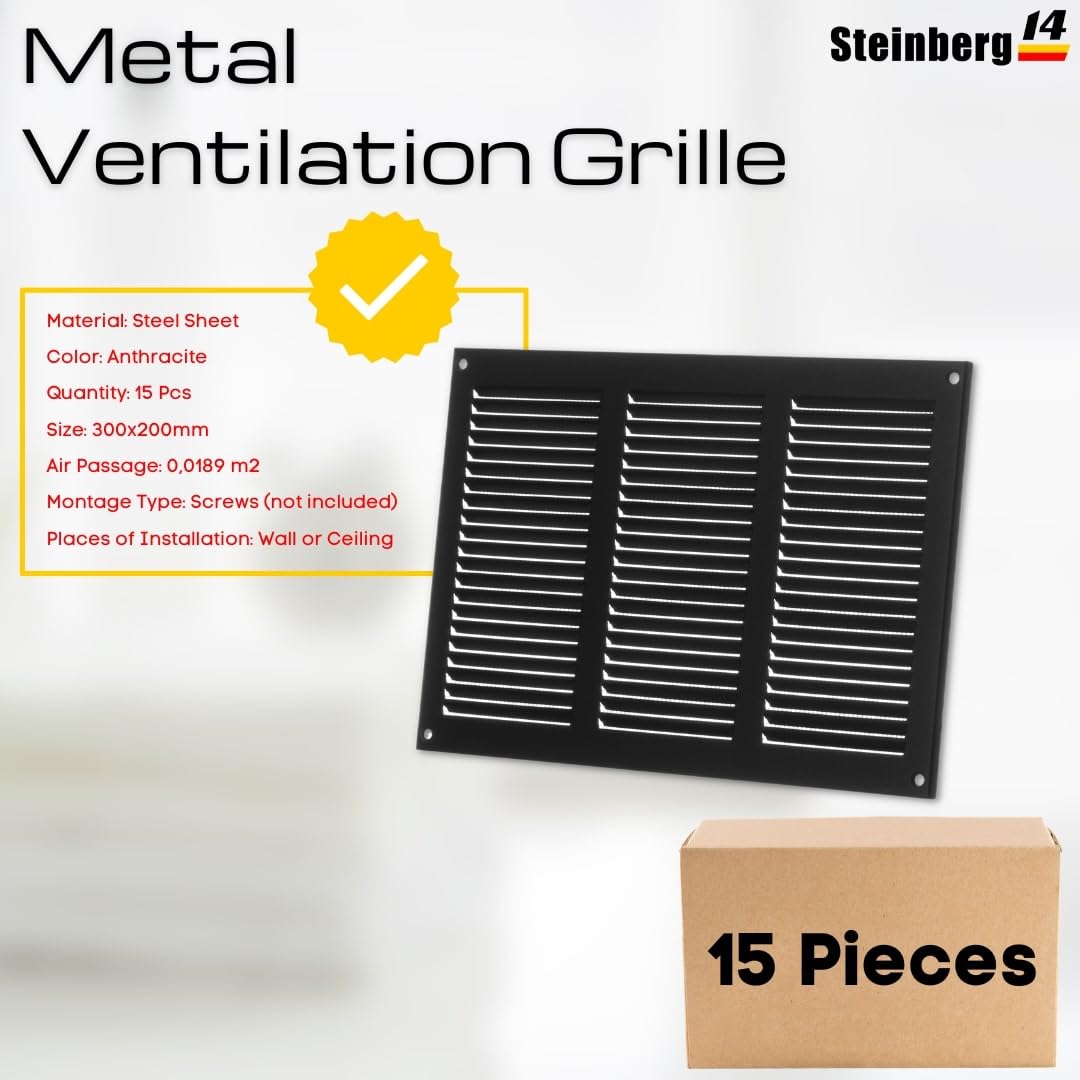

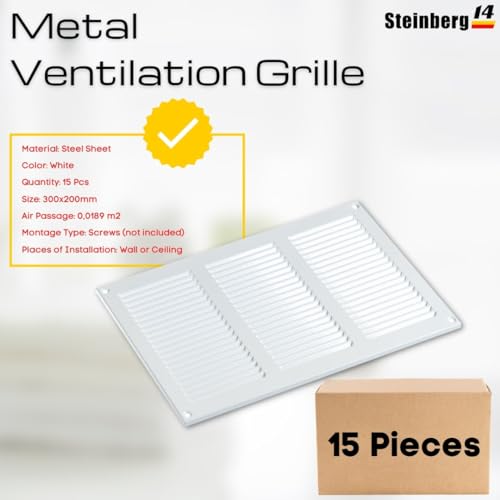

Set of 15 pcs Metal Vent Grilles for ventilation inlet and exhaust openings. Wall mounted or ceiling mounted, perfect for bathroom, kitchen, room exhaust and ventilation use.

Features:

Set of 15 Ventilation Grilles - Size of 300x200mm / 11.81x7.87'', Ideal for Various Applications - Made of Robust Steel for High Stability and Durability

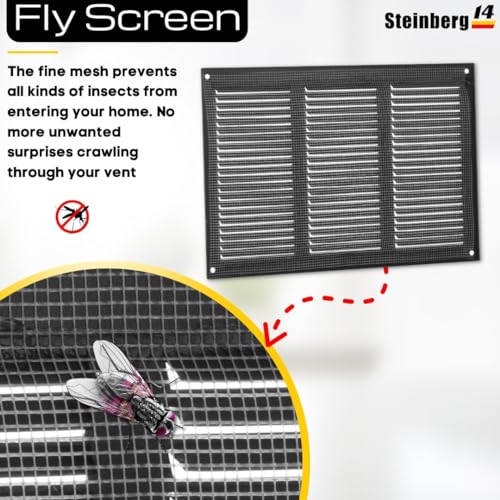

Special Coating Protects against Rust Formation - Suitable for Ventilation both Indoors and Outdoors - Equipped with Insect Screen made of Fine-mesh Material for Reliable Protection
Ensures Optimal Air Circulation for Efficient Ventilation of Rooms - Suitable for Bathroom, Kitchen, Garage, Office, Commercial and Industrial Buildings
Pre-drilled Holes Facilitate Quick and Easy Installation (screws not included)
Suitable for Wall or Ceiling Mounting
Aesthetic Appearance that Blends Seamlessly into Various Architectural Styles .
Made in Europe

Color:

Anthracite

Size:

300x200 mm / 12x8 inch

Variant

10 in stock

Tax and shipping included

Made in EU

Technical data and dimensions

Metal Grilles with insect screen - MR Series screen sizes

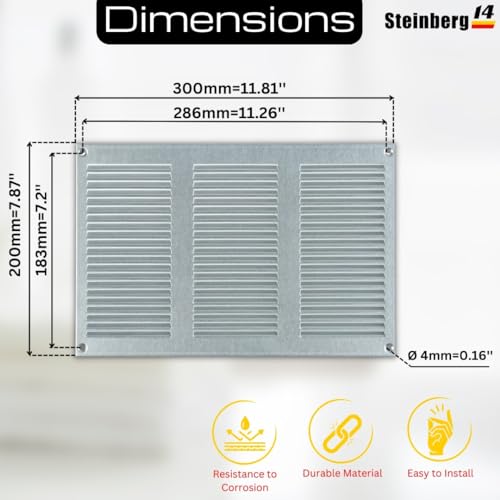

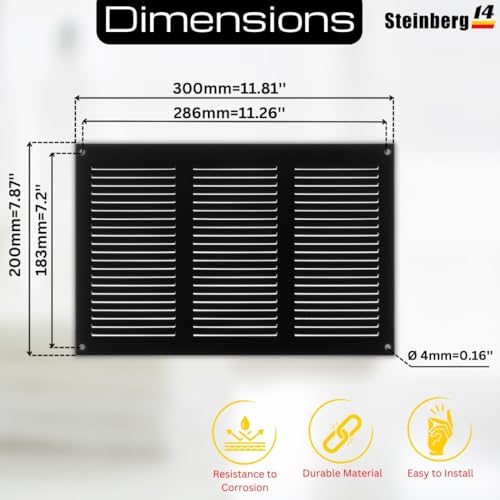

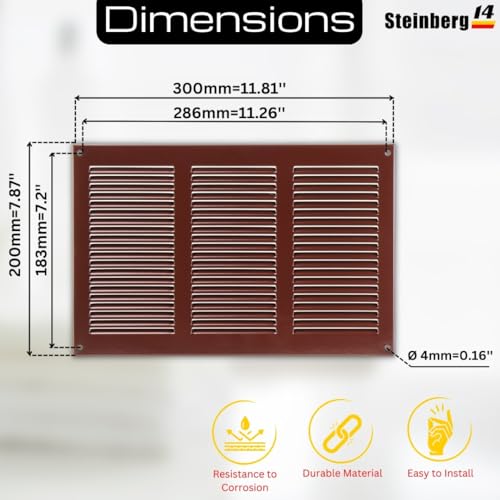

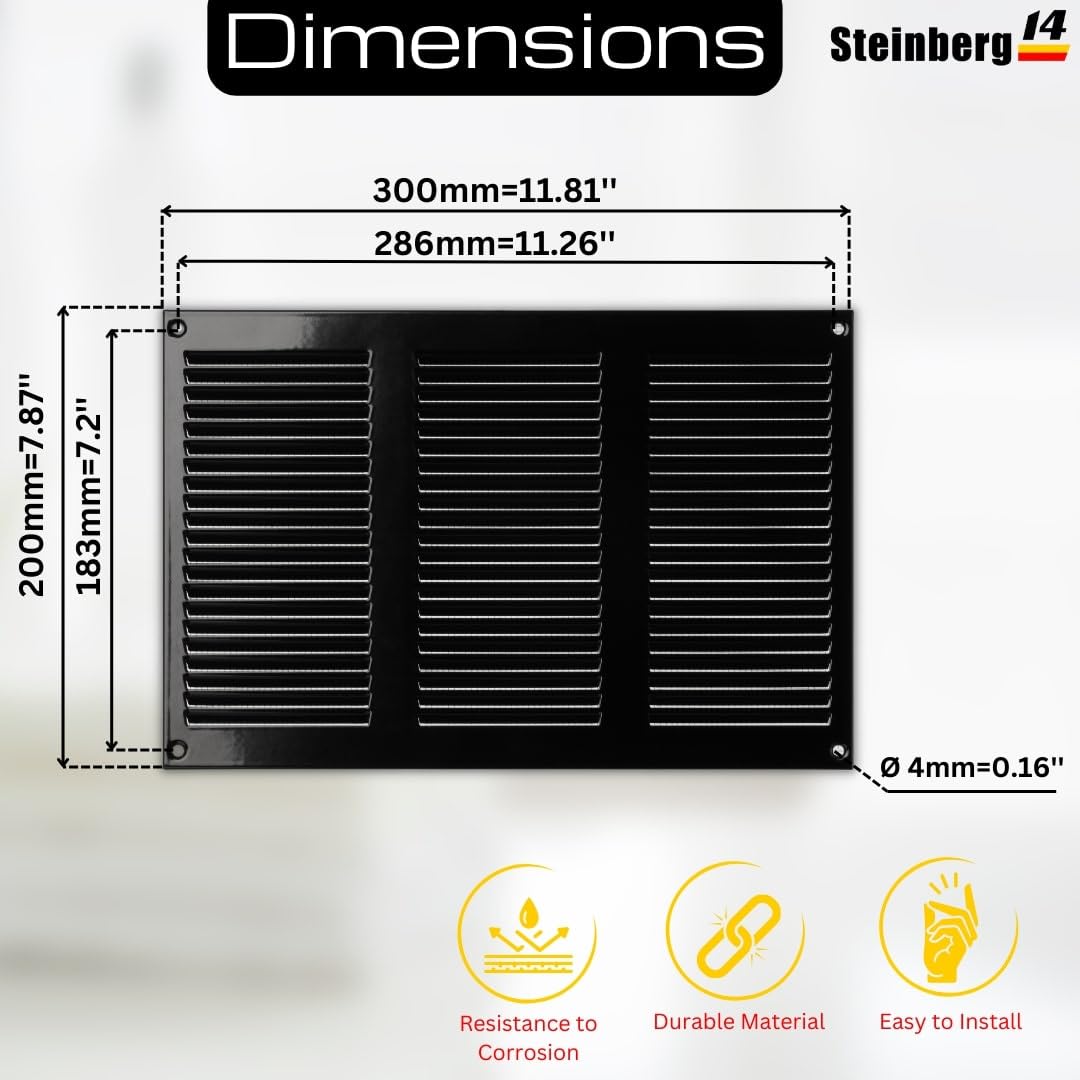

Scheme with the dimensions of the metal grilles.

Metal Grilles with insect screen - technical info

Model size	A (mm)	B (mm)	C (mm)	D (mm)	G (mm)	Air Pass (m²)	m (kg)
100x100 mm / 4x4 inch	100	100	86	83	6	0,0025	0,04
200x100 mm / 8x4 inch	200	100	186	83	6	0,005	0,08
200x150 mm 8x6 inch	200	150	186	133	6	0,0088	0,12
200x200 mm / 8x8 inch	200	200	186	183	6	0,0126	0,16
200x250 mm / 8x10 inch	200	250	186	233	6	0,0164	0,2
200x300 mm / 8x12 inch	200	300	186	283	6	0,0208	0,23
300x50 mm / 12x2 inch	300	50	286	33	6	0,0009	0,07
300x100 mm / 12x4 inch	300	100	286	83	6	0,0076	0,12
300x150 mm / 12x6 inch	300	150	286	133	6	0,0132	0,18
300x200 mm / 12x8 inch	300	200	286	183	6	0,0189	0,23
300x300 mm / 12x12 inch	300	200	286	283	6	0,0312	0,35
400x50 mm / 16x2 inch	400	50	386	33	6	0,0013	0,09
400x100 mm / 16x4 inch	400	100	386	83	6	0,0101	0,16
400x150 mm / 16x6 inch	400	150	386	133	6	0,0176	0,24
400x200 mm / 16x8 inch	400	200	386	183	6	0,0252	0,31
400x300 mm / 16x12 inch	400	300	386	283	6	0,0416	0,46
400x400 mm / 16x16 inch	400	400	386	383	6	0,0567	0,61
500x100 mm / 20x4 inch	500	100	486	83	6	0,0126	0,2
500x150 mm / 20x6 inch	500	150	486	133	6	0,0221	0,29
500x200 mm / 20x8 inch	500	200	486	183	6	0,0315	0,39
500x300 mm / 20x12 inch	500	300	486	283	6	0,052	0,57
500x400 mm / 20x16 inch	500	400	486	383	6	0,0709	0,75
500x500 mm / 20x20 inch	500	500	486	483	6	0,0914	0,94

In The Box

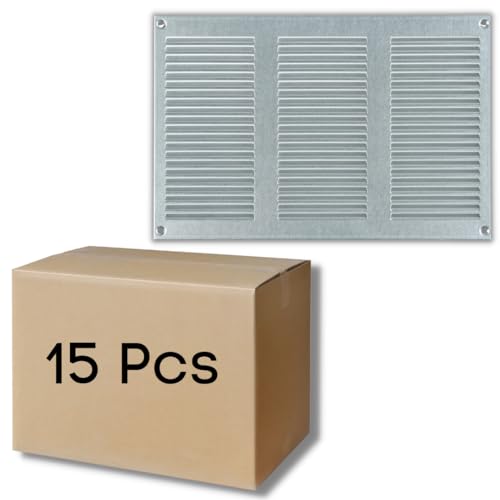

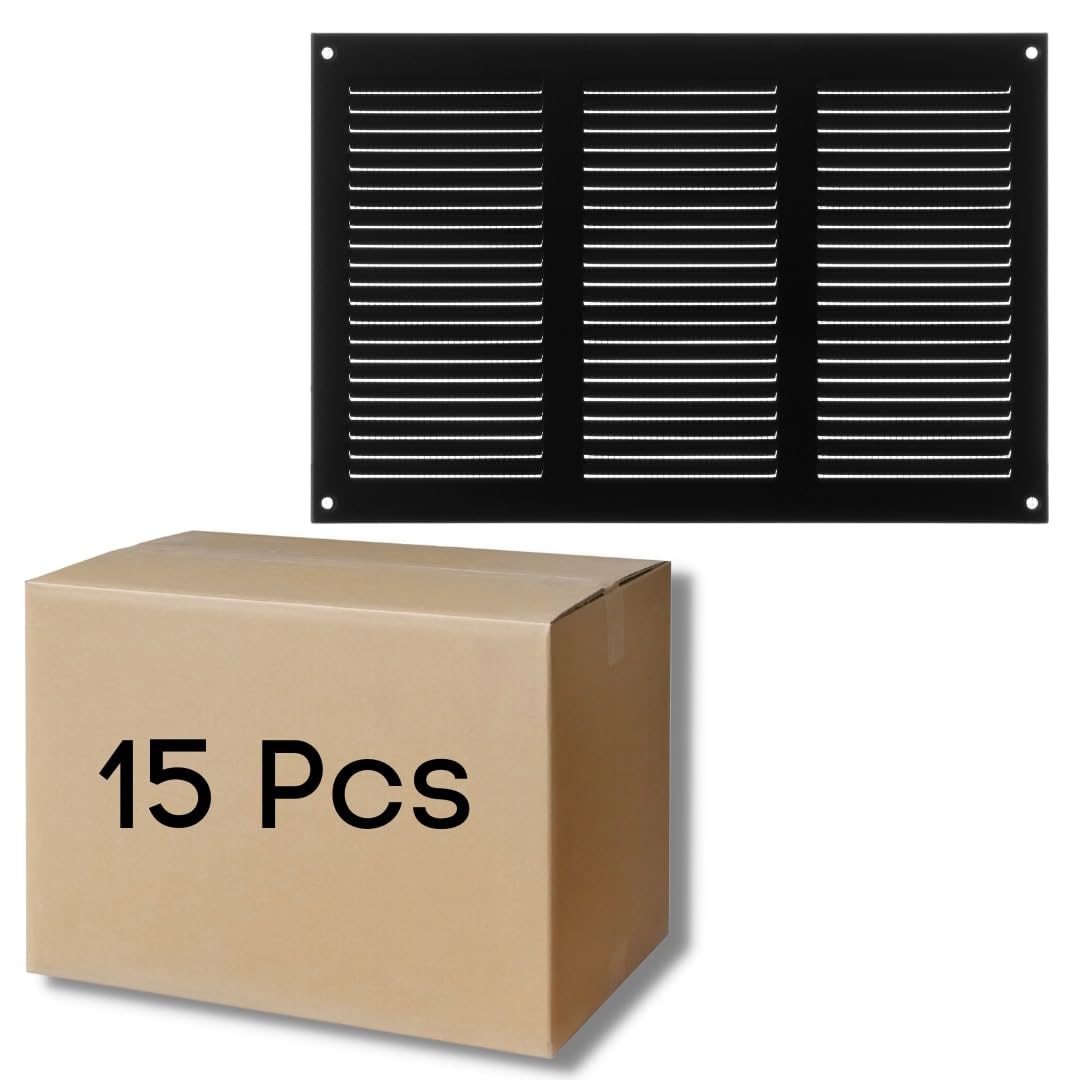

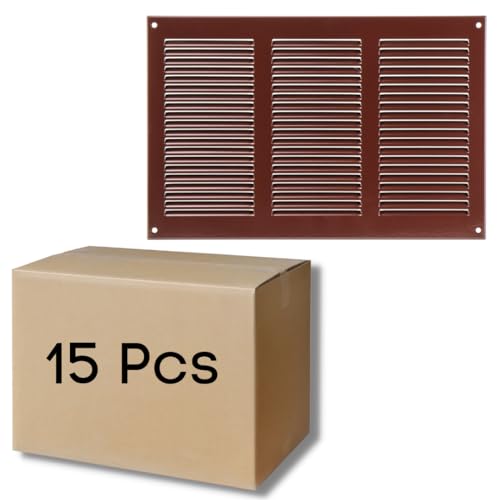

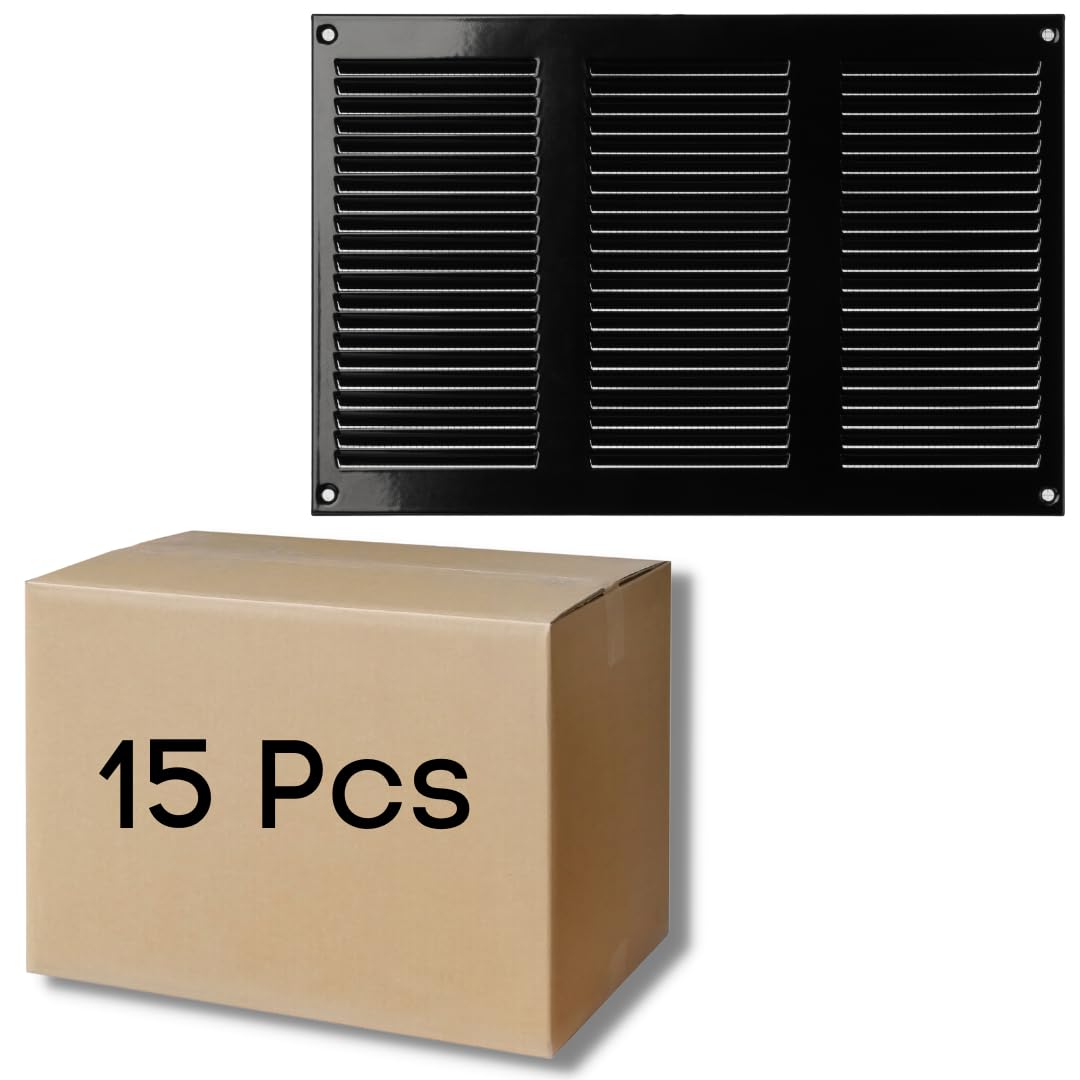

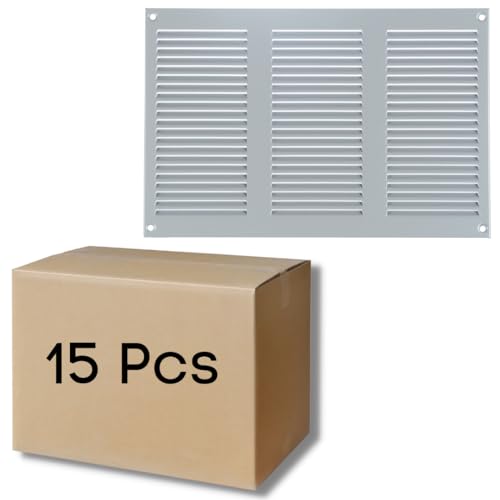

15 pcs identical Metal Ventilation Grilles in the selected size and color.
