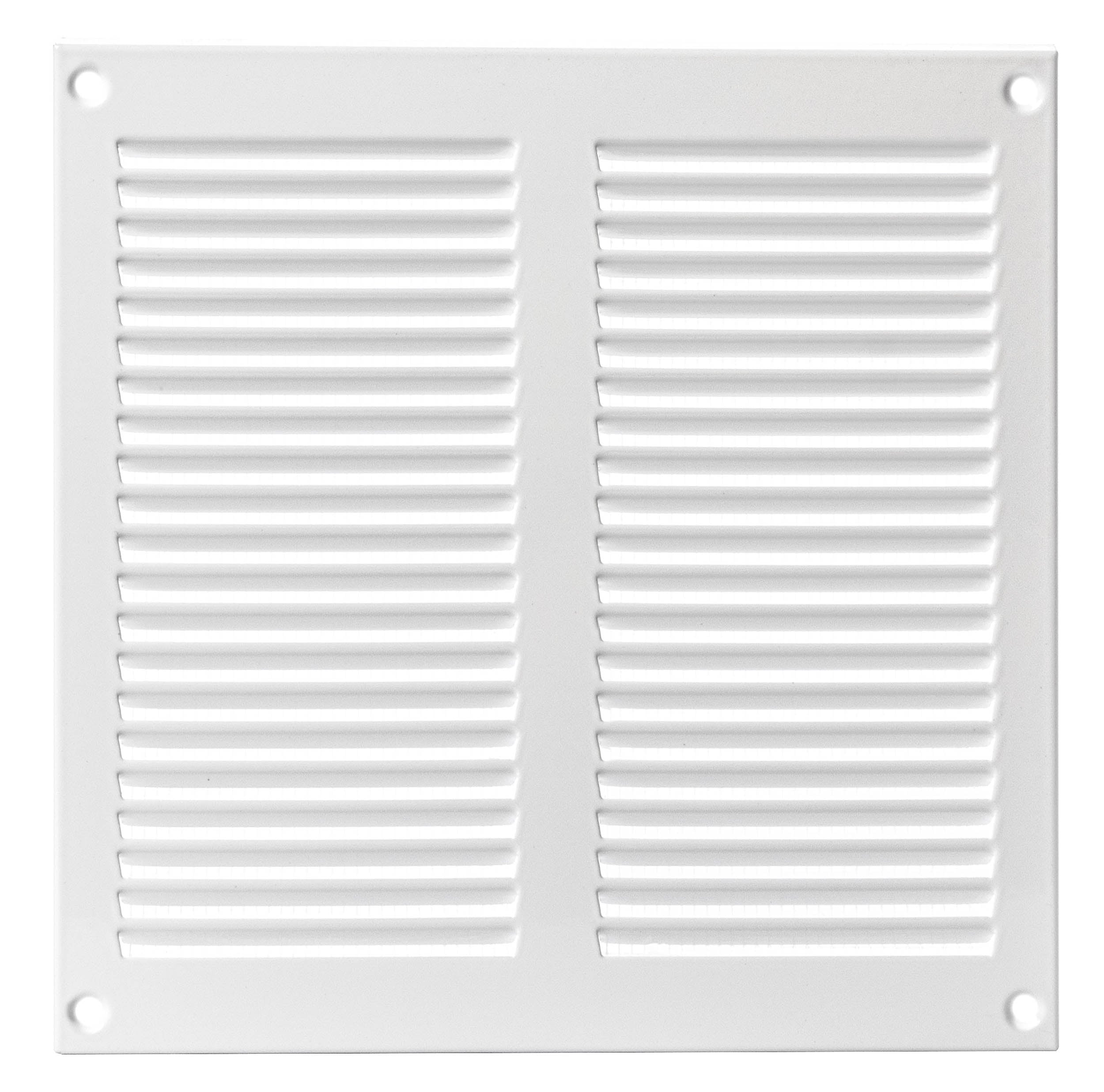

White Metal Air Vent Cover with Flyscreen
White Metal Vent Grilles for ventilation inlet and exhaust openings. Wall mounted or ceiling mounted, perfect for bathroom, kitchen, room exhaust and ventilation use.
Features
- Ventilation grille made of sheet steel with internal slats and insect protection
- The internal fly screen prevents insects from entering the interior
- Assembly is quick, clean and requires no heavy tools
- This grille can be used both indoors and outdoors
- This ventilation grille is suitable for mounting on the wall, door or ceiling
Steinberg14 Metal Ventilation Covers are delivered from Amazon warehouses, so you can get your items quickly. Made in Europa.
Made in EU
Metal Grilles with insect screen - MR Series screen sizes

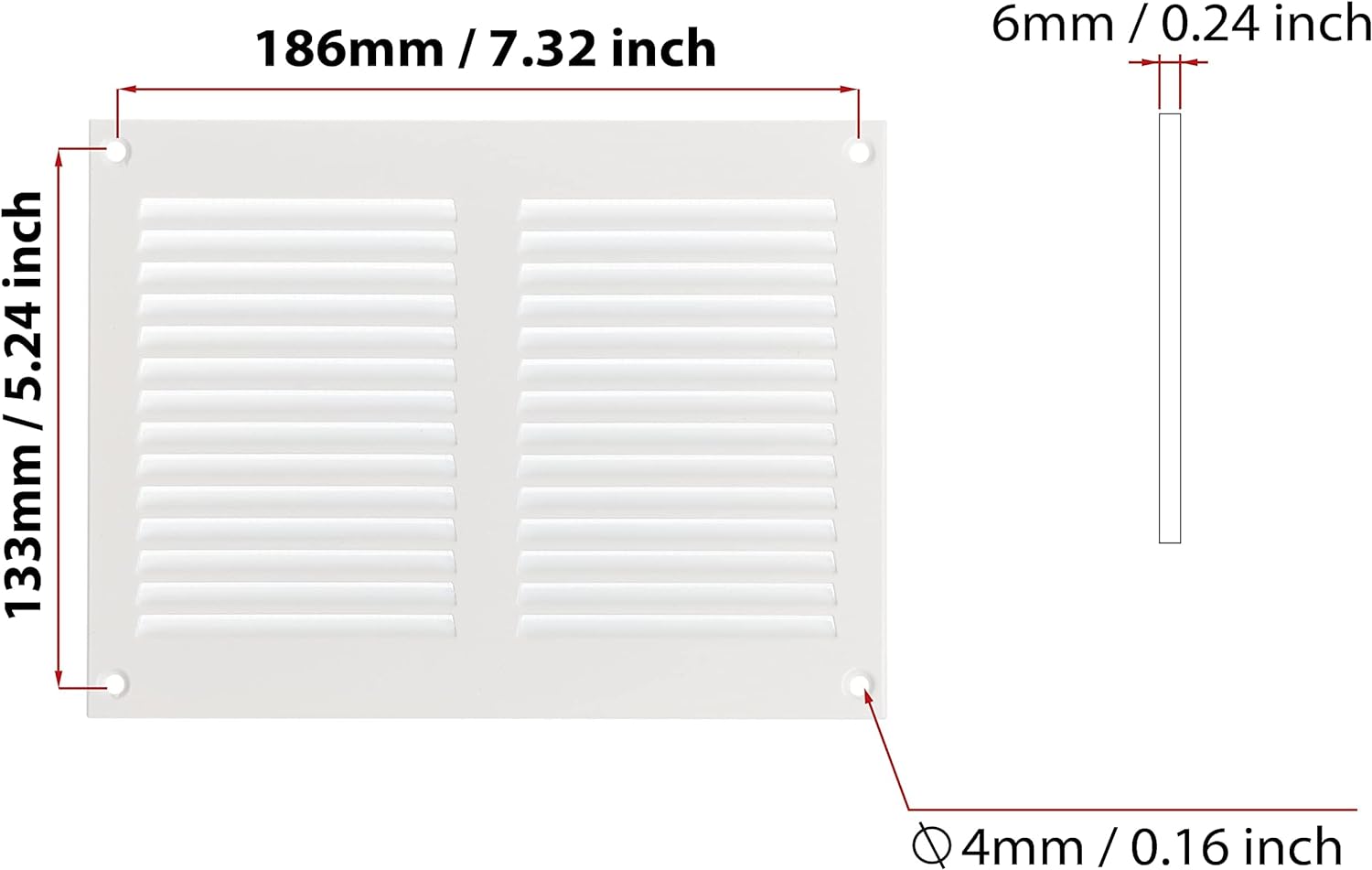

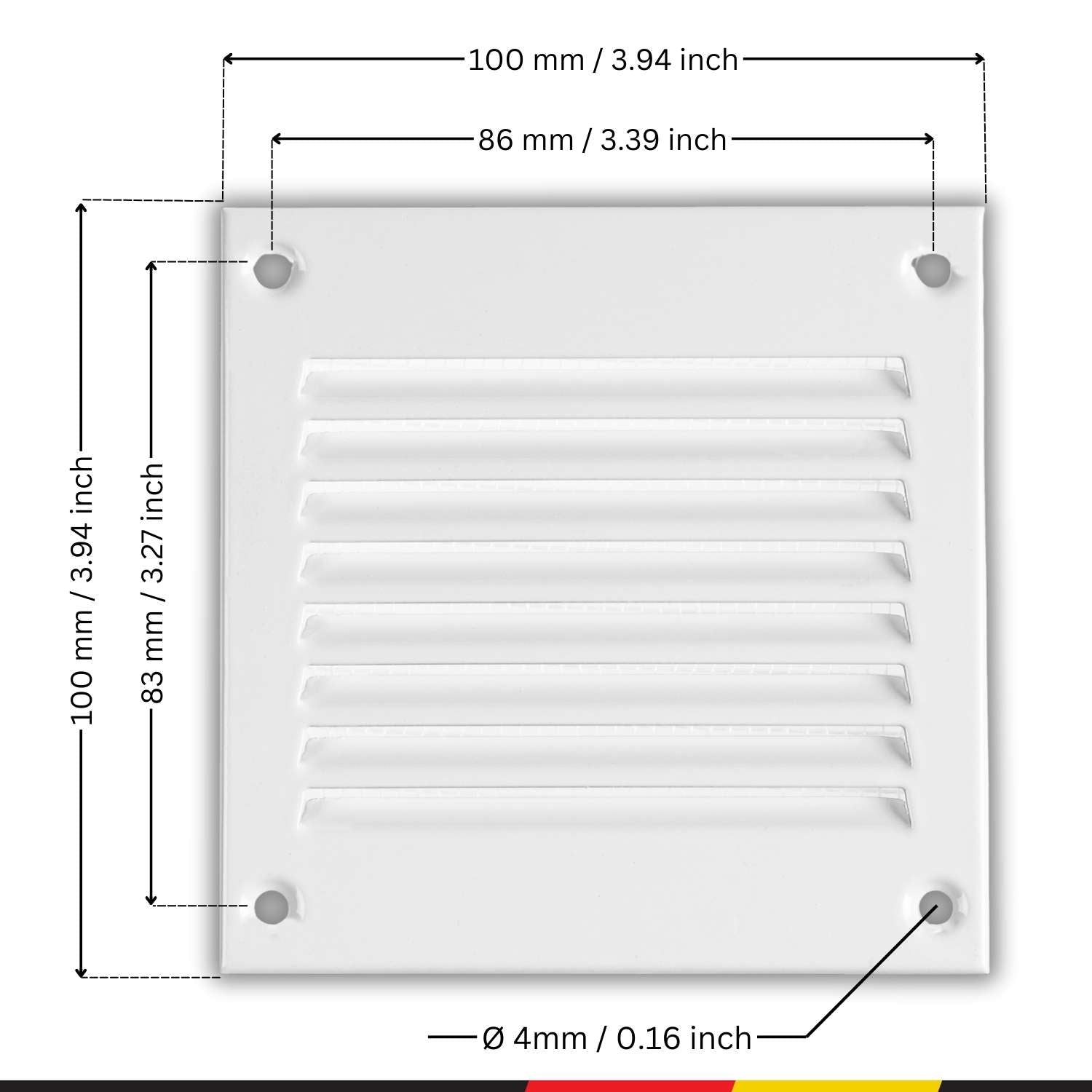

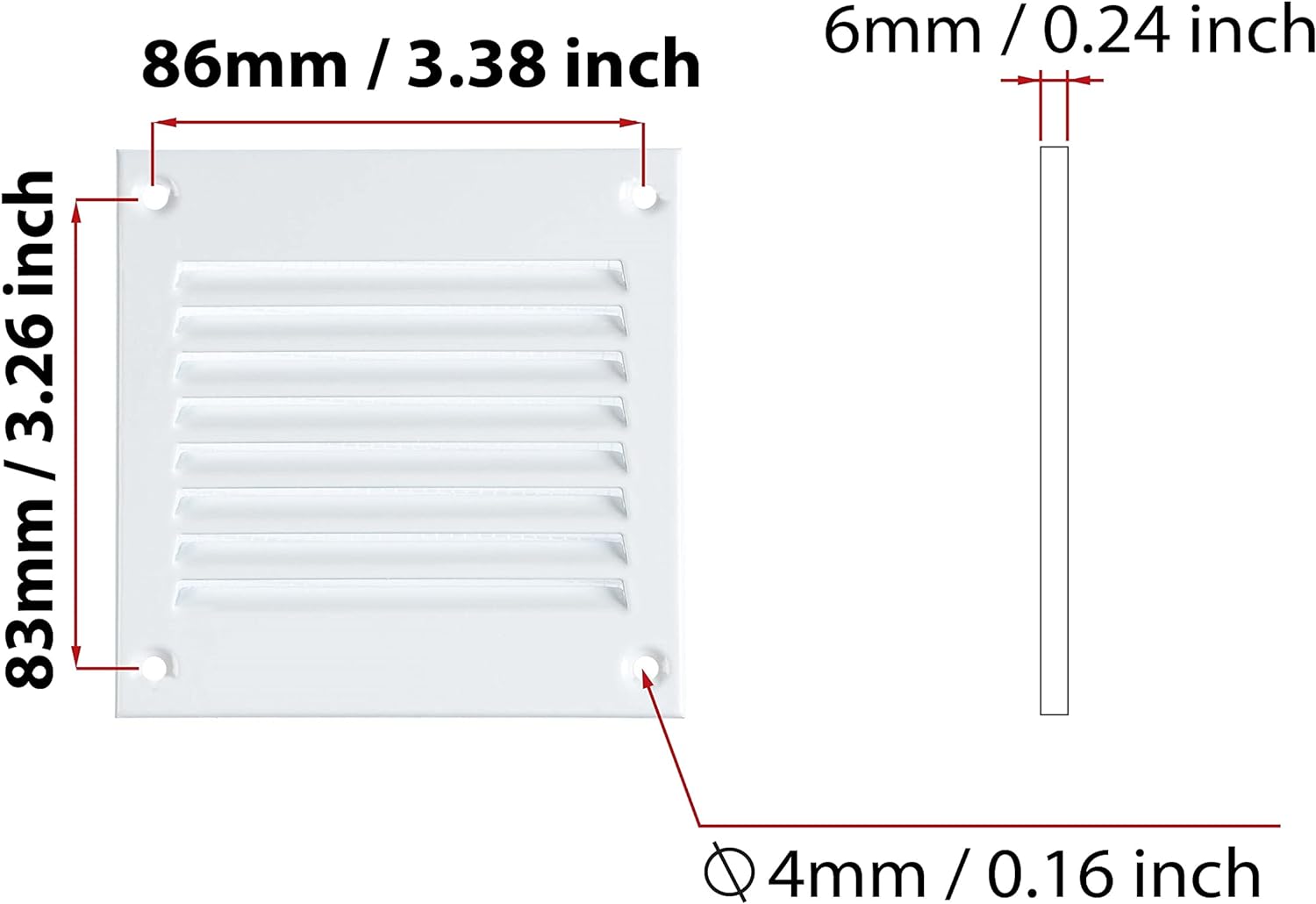

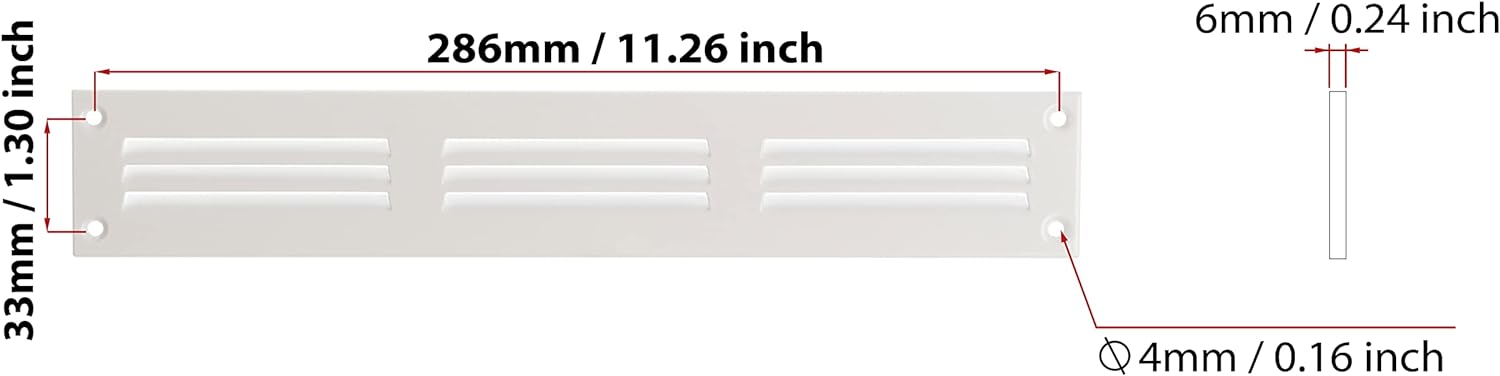

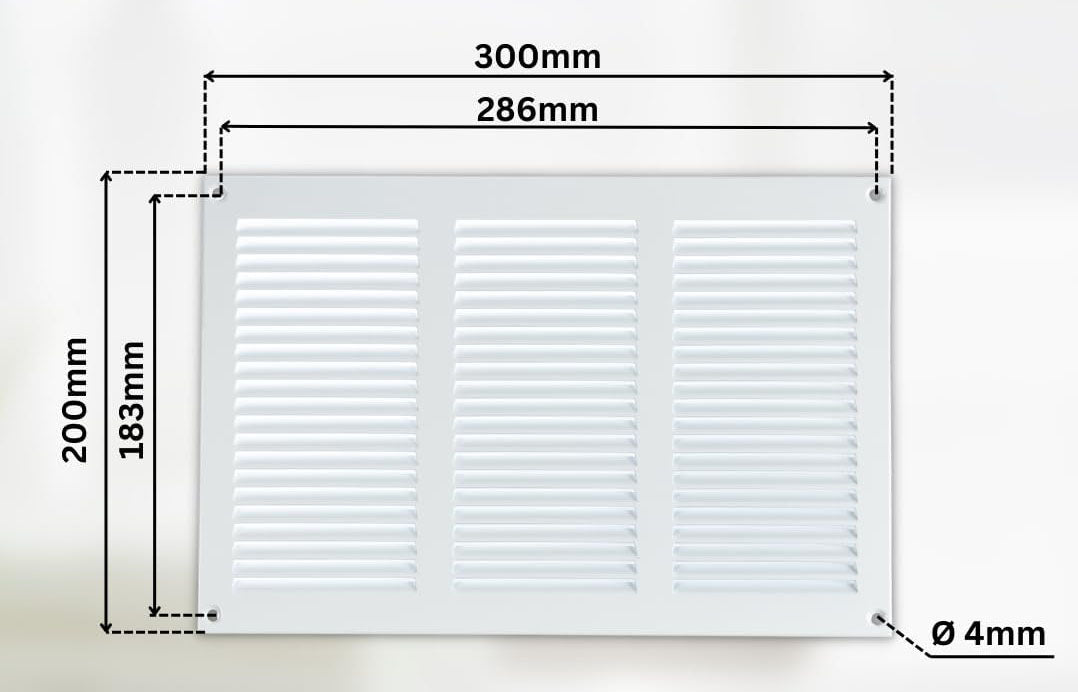

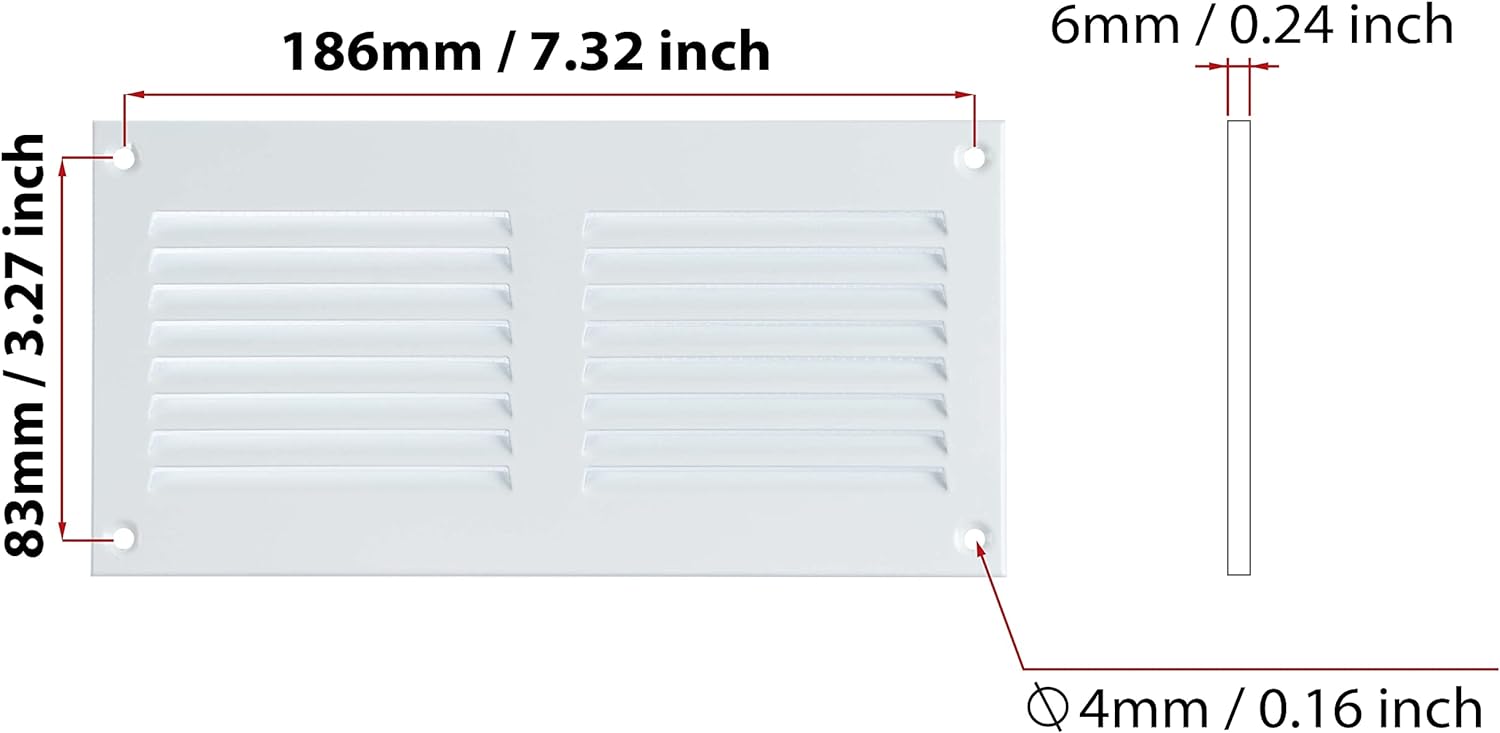

Scheme with the dimensions of the metal grilles.
Model size | A (mm) |
B (mm) |
C (mm) |
D (mm) |
G (mm) |
Air Pass (m²) |
m (kg) |

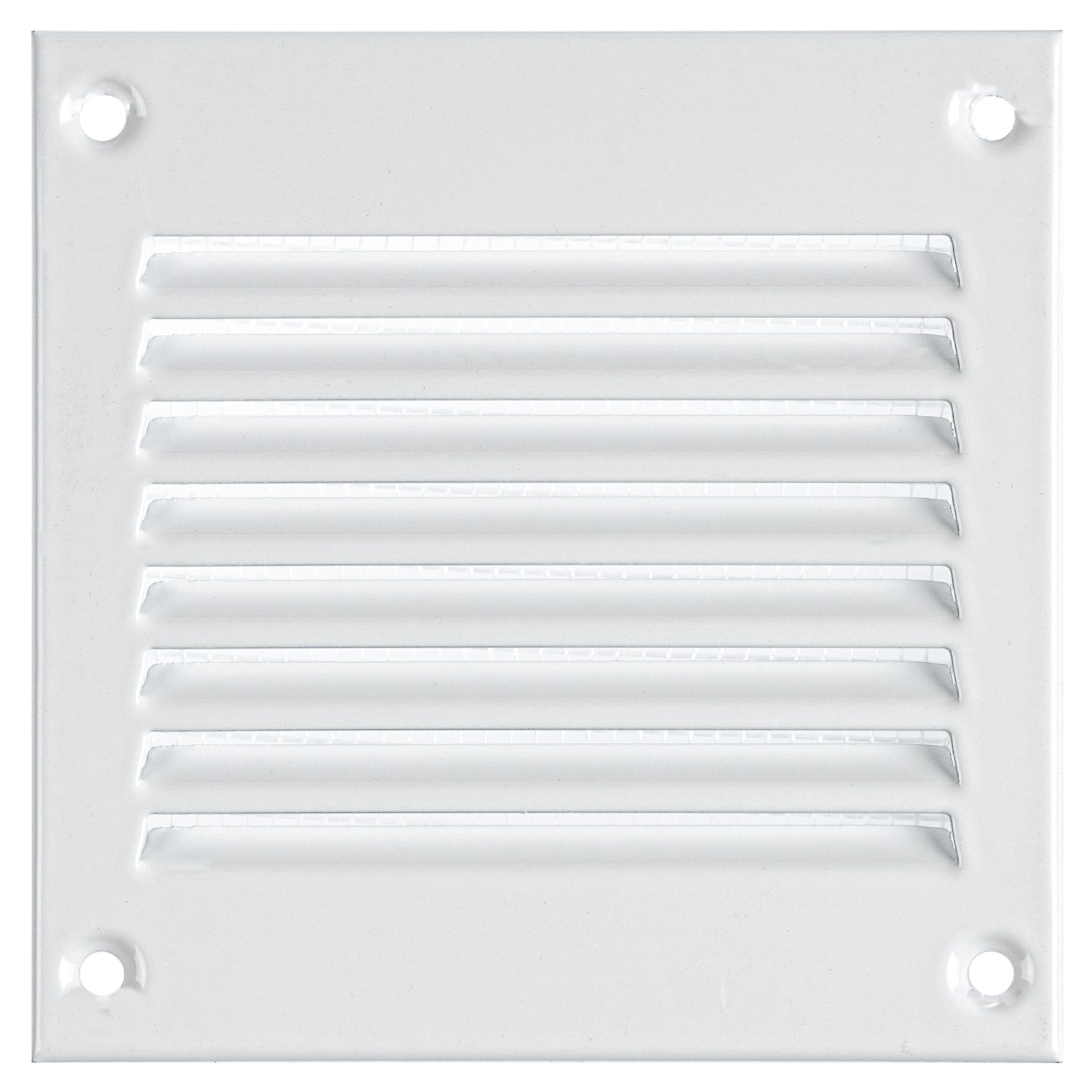

100x100 mm / 4x4 inch |
100 | 100 | 86 | 83 | 6 | 0,0025 | 0,04 |
200x100 mm / 8x4 inch |
200 | 100 | 186 | 83 | 6 | 0,005 | 0,08 |
200x150 mm 8x6 inch |
200 | 150 | 186 | 133 | 6 | 0,0088 | 0,12 |
200x200 mm / 8x8 inch |
200 | 200 | 186 | 183 | 6 | 0,0126 | 0,16 |

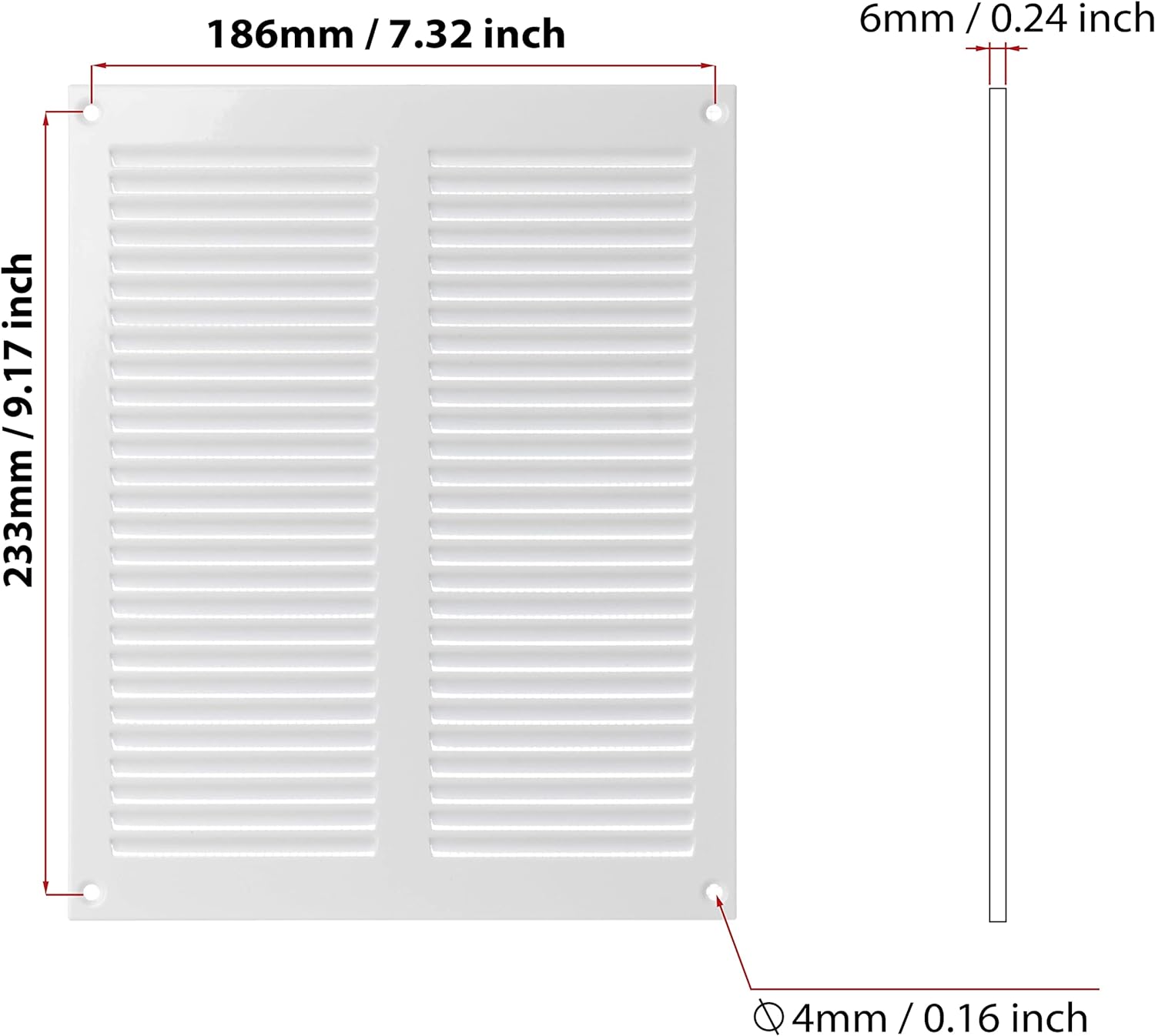

200x250 mm / 8x10 inch |
200 | 250 | 186 | 233 | 6 | 0,0164 | 0,2 |

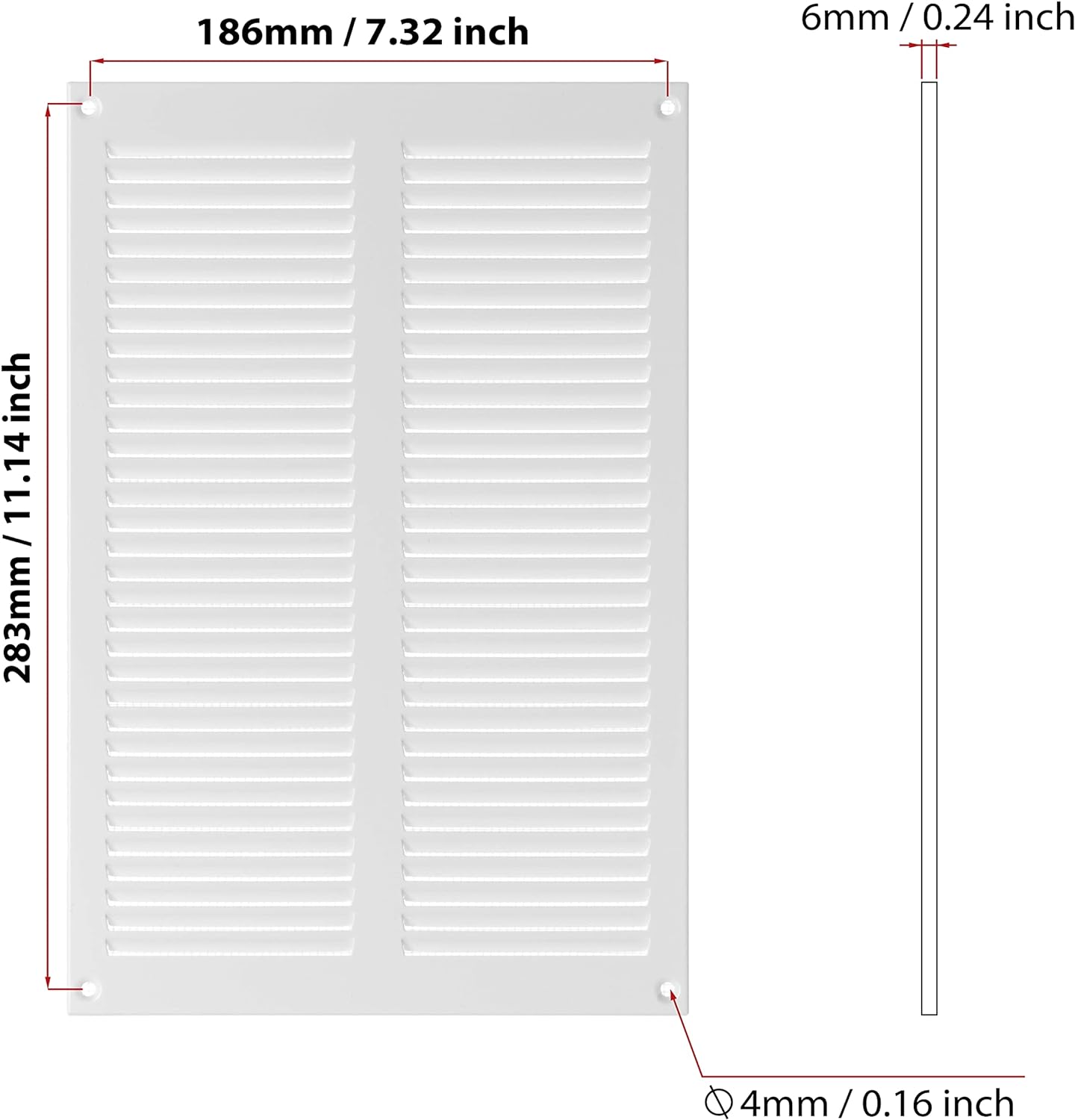

200x300 mm / 8x12 inch |
200 | 300 | 186 | 283 | 6 | 0,0208 | 0,23 |
300x50 mm / 12x2 inch |
300 | 50 | 286 | 33 | 6 | 0,0009 | 0,07 |
300x100 mm / 12x4 inch |
300 | 100 | 286 | 83 | 6 | 0,0076 | 0,12 |
300x150 mm / 12x6 inch |
300 | 150 | 286 | 133 | 6 | 0,0132 | 0,18 |
300x200 mm / 12x8 inch |
300 | 200 | 286 | 183 | 6 | 0,0189 | 0,23 |

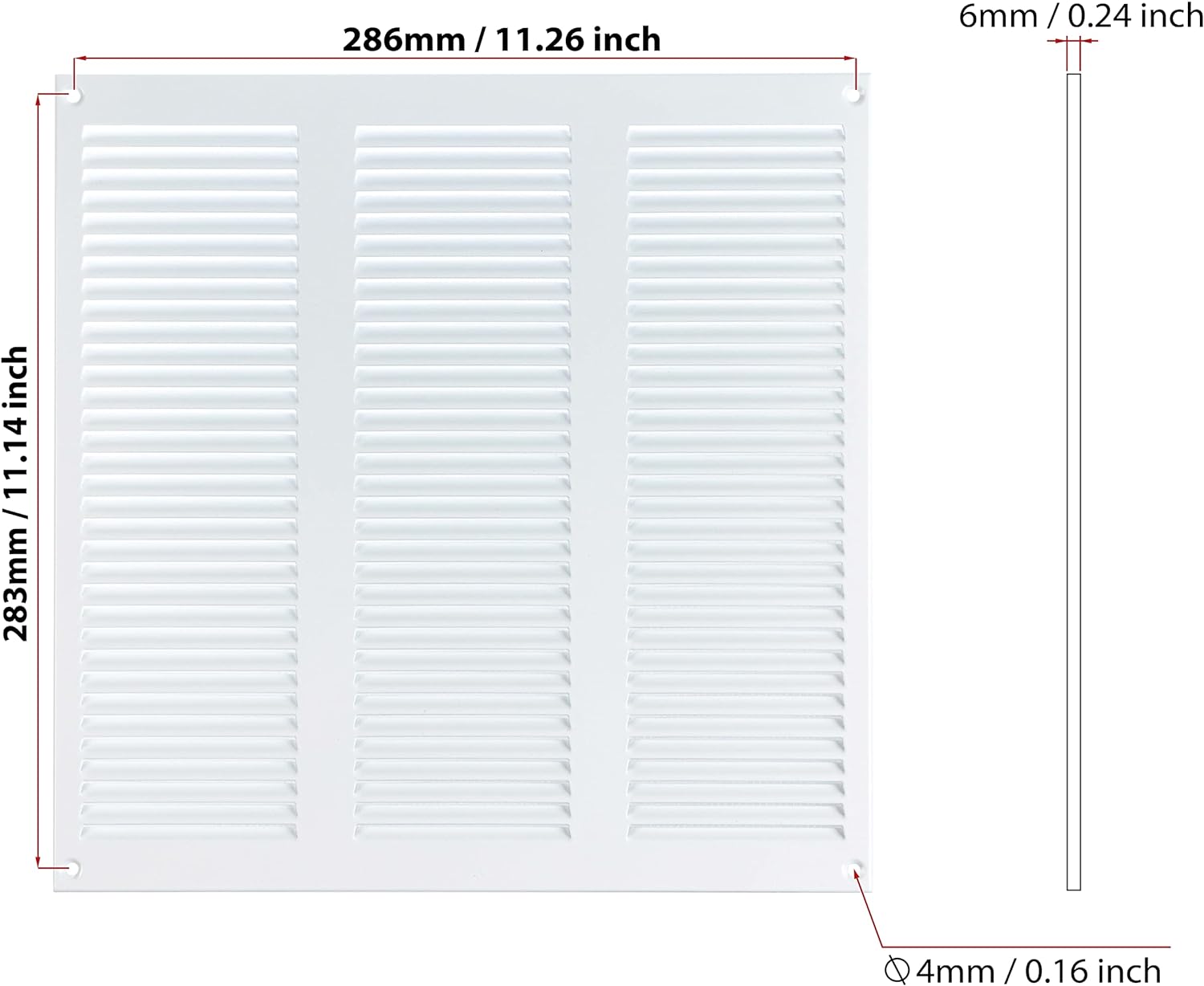

300x300 mm / 12x12 inch |
300 | 200 | 286 | 283 | 6 | 0,0312 | 0,35 |
400x50 mm / 16x2 inch |
400 | 50 | 386 | 33 | 6 | 0,0013 | 0,09 |

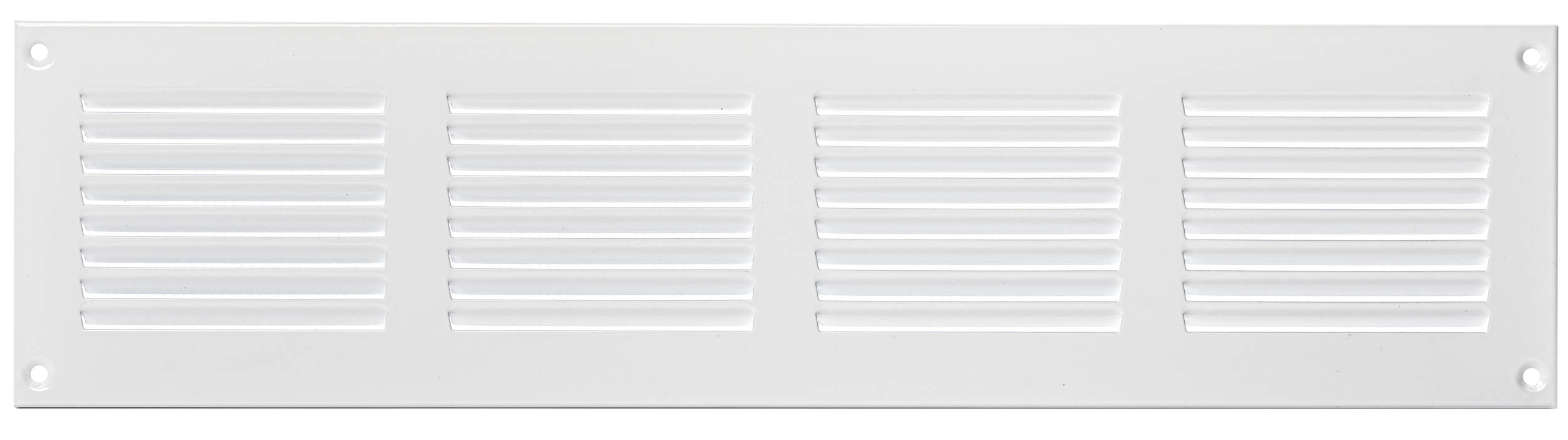

400x100 mm / 16x4 inch |
400 | 100 | 386 | 83 | 6 | 0,0101 | 0,16 |

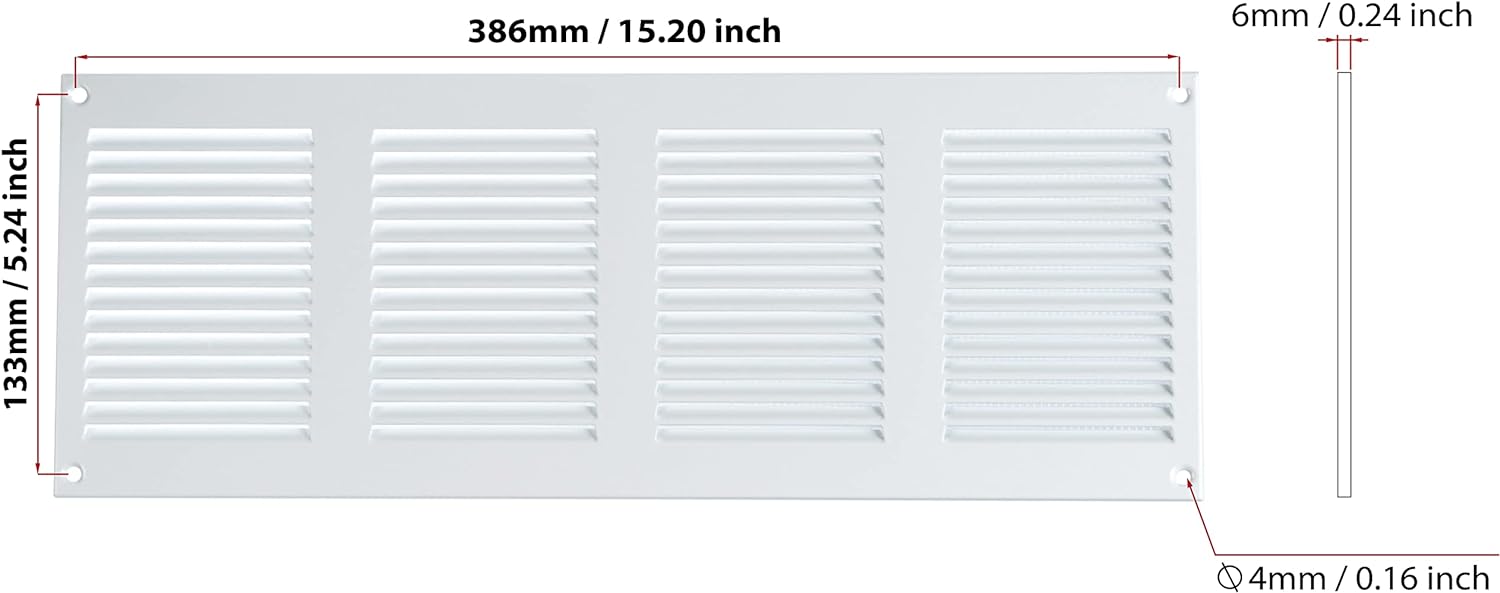

400x150 mm / 16x6 inch |
400 | 150 | 386 | 133 | 6 | 0,0176 | 0,24 |
400x200 mm / 16x8 inch |
400 | 200 | 386 | 183 | 6 | 0,0252 | 0,31 |

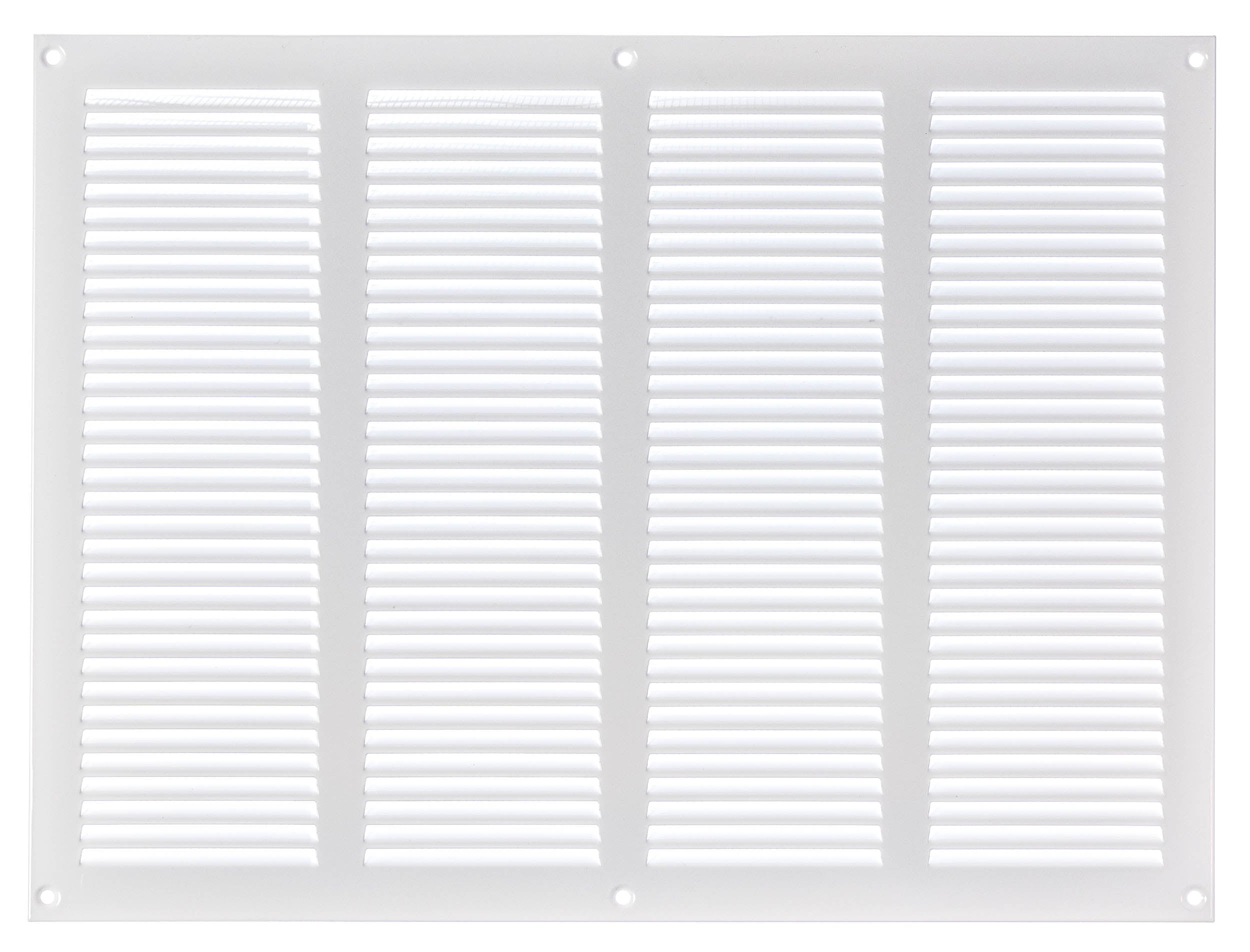

400x300 mm / 16x12 inch |
400 | 300 | 386 | 283 | 6 | 0,0416 | 0,46 |

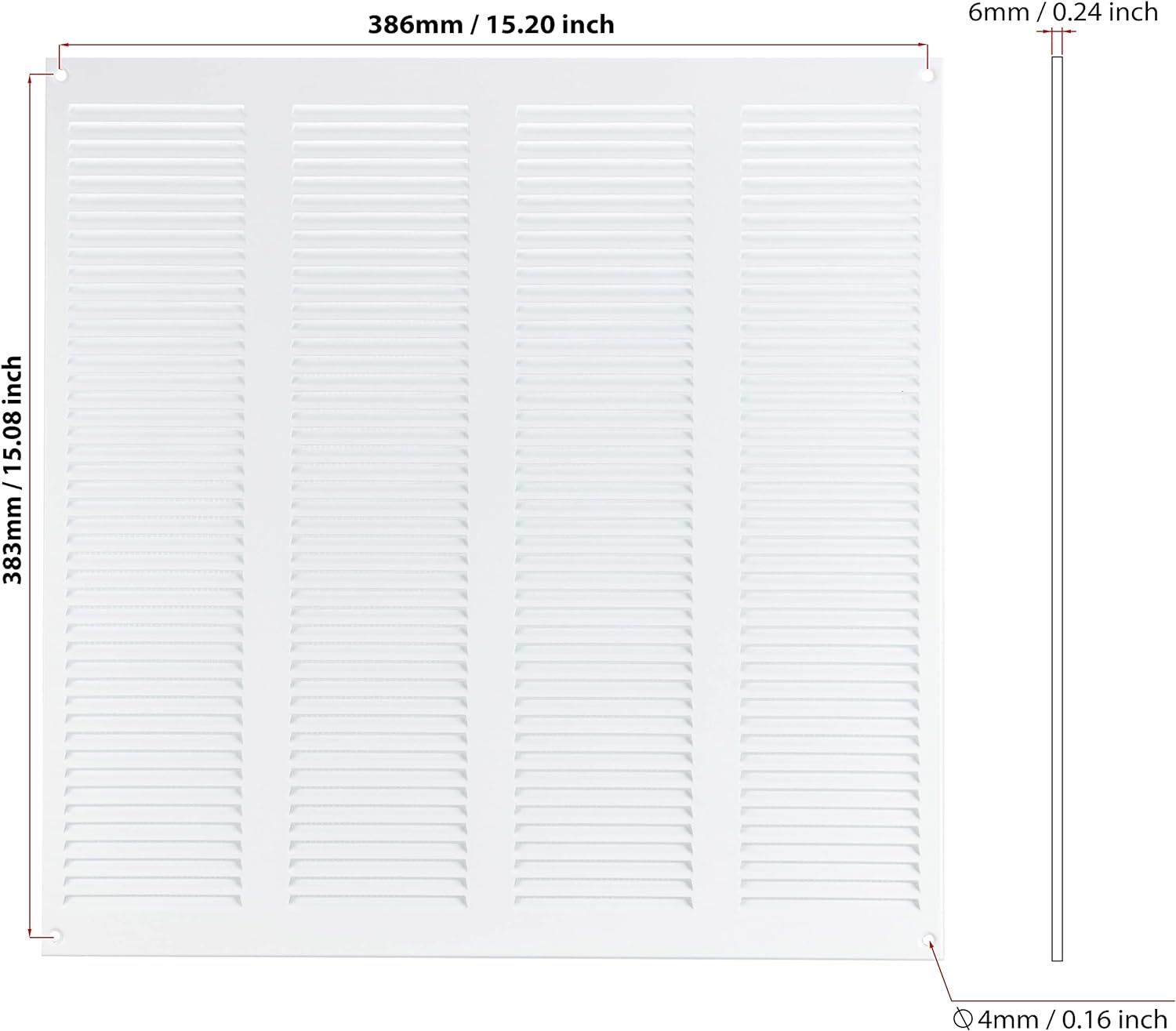

400x400 mm / 16x16 inch |
400 | 400 | 386 | 383 | 6 | 0,0567 | 0,61 |

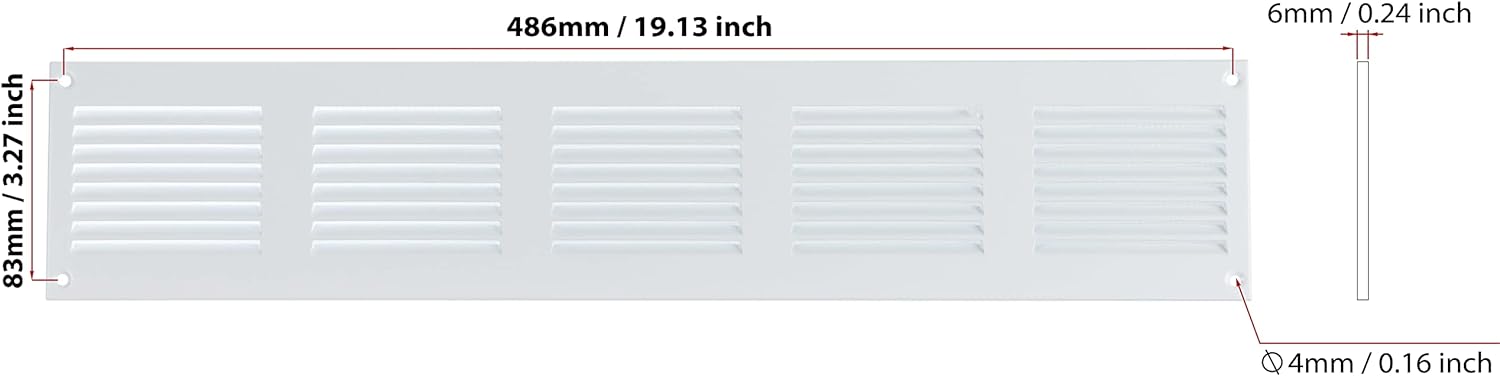

500x100 mm / 20x4 inch |
500 | 100 | 486 | 83 | 6 | 0,0126 | 0,2 |

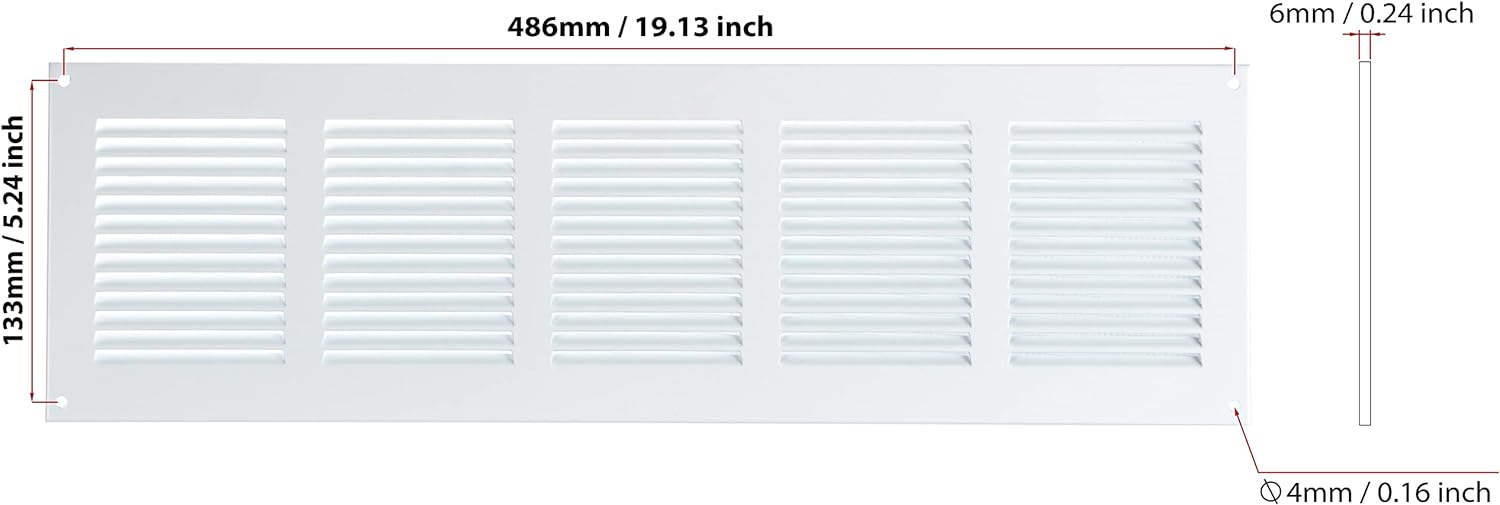

500x150 mm / 20x6 inch |
500 | 150 | 486 | 133 | 6 | 0,0221 | 0,29 |
500x200 mm / 20x8 inch |
500 | 200 | 486 | 183 | 6 | 0,0315 | 0,39 |
500x300 mm / 20x12 inch |
500 | 300 | 486 | 283 | 6 | 0,052 | 0,57 |

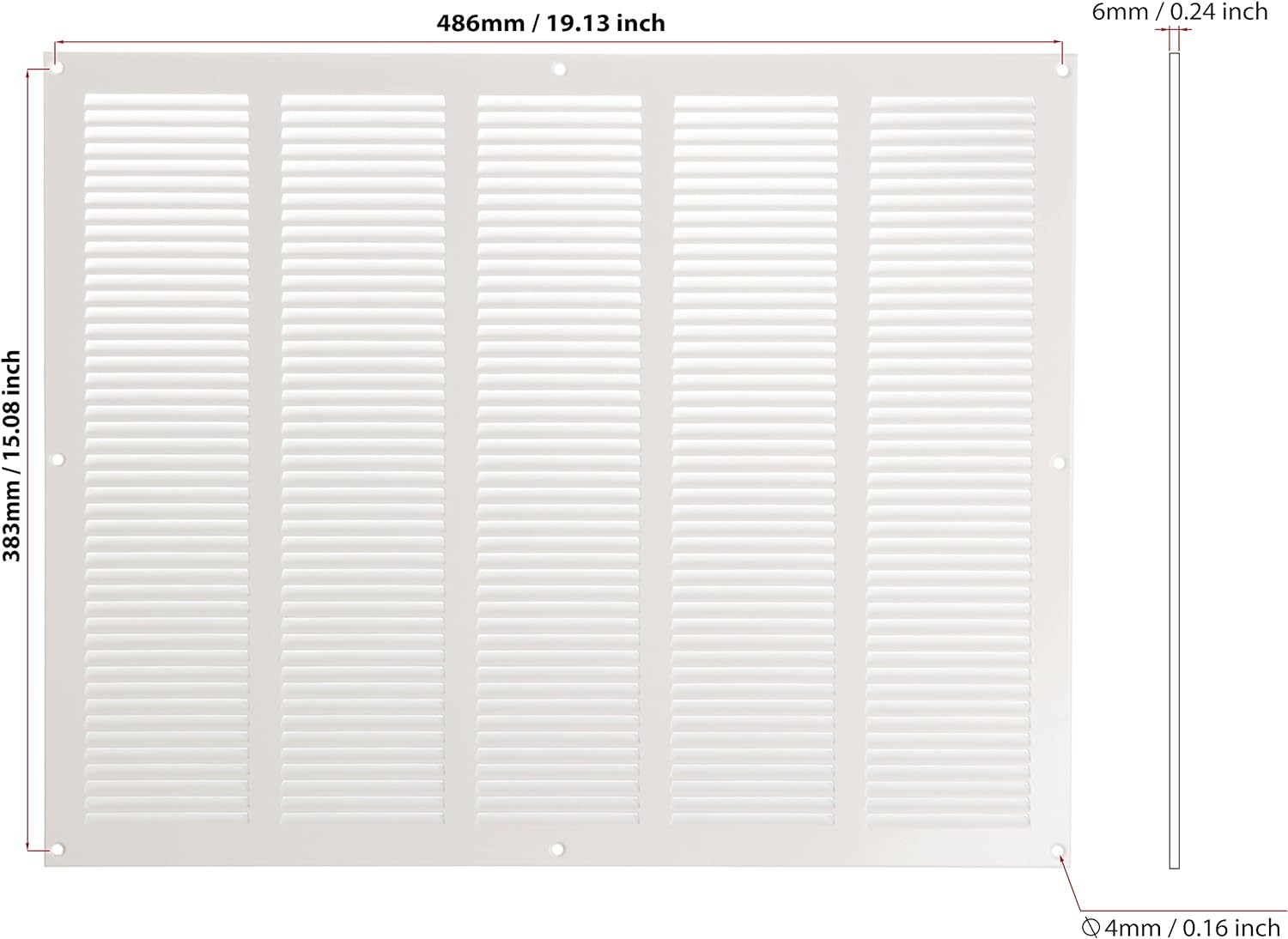

500x400 mm / 20x16 inch |
500 | 400 | 486 | 383 | 6 | 0,0709 | 0,75 |

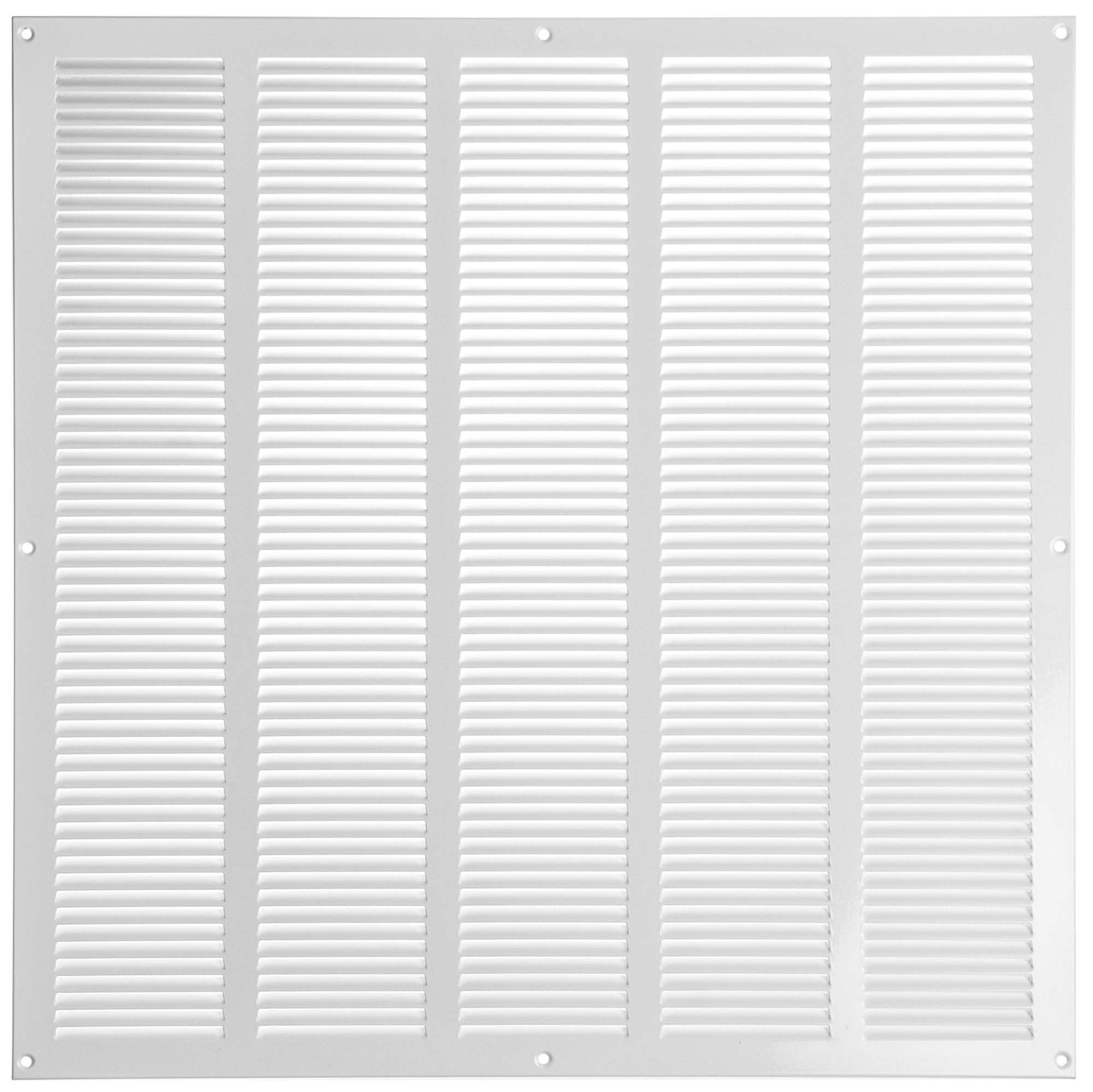

500x500 mm / 20x20 inch |
500 | 500 | 486 | 483 | 6 | 0,0914 | 0,94 |
